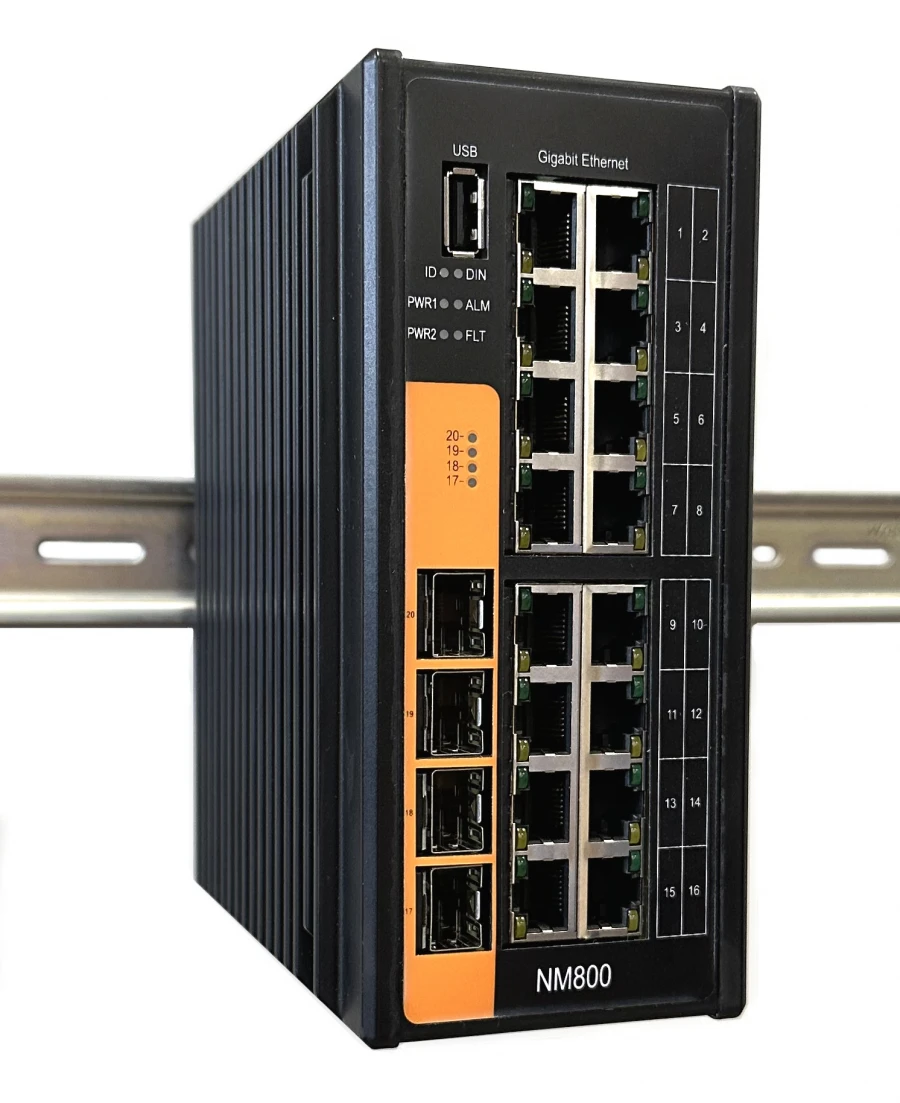

Managed Industrial Ethernet Switch NM800 for DIN Rail Applications

Available for Import

Managed Industrial Ethernet Switch NM800 for Seamless Network Integration

Switching Communication Systems

Manufacturer:DOLOMANT OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

NM800 is a managed Ethernet switch designed to combine into a single information network of devices, complexes and various systems with the help of information transmission channels through a physical medium such as optical fibre and copper cable, as well as to create a single multi-service, fault-tolerant industrial data network, providing interconnection and operation of complex automation systems of technological processes of industrial facilities.
The product is equipped with 10/100/1000Base-T ports, some of which are PoE-enabled for twisted pair connections, and 10Gbase-X SFP ports, allowing you to connect to networks with copper and optical communication lines.

Specifications

External interfaces

Two power connectors (PWR1, PWR2); connector (USB Type B) for connecting to the "USB CONSOLE" console; connector for isolated dry contact input "DI"; connector (USB Type A) for connecting a drive for software update; SFP application.

?????????? NM800-01/NM800-01-COATED

4 SFP+ 10 Gbase-X ports; 16 10/100/1000Base-T ports (8 PoE ports)

?????????? NM800-02/NM800-02-COATED

4 SFP+ 10 Gbase-X ports; 8 10/100/1000Base-T ports (8 PoE ports)

?????????? NM800-03/NM800-03-COATED

2 SFP 1000 Base-X ports; 8 10/100/1000Base-T ports

Connection to 10/100/1000Base-T

full duplex, half duplex

Indication

PWR1 power supply; PWR2 power supply; ALARM output status; FAULT output status; isolated input status; device identification

Buttons

Reset button with functions: - hardware reset, -software reset

Control interface

ICLI command line interface

Support for network standards

IEEE 802.3, 802.3i, 802.3u, 802.3z, 802.3ab

Protocol support

IPv4/IPv6; SNMP; LLDP; Port Mirror; DHCP Server; TFTP; SMTP; Telnet; Syslog; Flow Control; VLAN (IEEE 802.1Q standard); IGMP; STP, RSTP; HTTPS, SSL, SSH; NTP Client, PTP

Supports IEEE 802.3ad link aggregation

Armoured glass

Support for QoS mechanisms

Armoured glass

Port Mirroring Support (Port Mirroring)

Armoured glass

LLDP, LACP support

Armoured glass

ERPS G.8032 protocol support

Armoured glass

MAC address table size

32K

Type of architecture

Open

Nutrition

DC power supply with nominal voltage of 48V; the device uses +18V to +57V from PWR1 or PWR2 connector(for backup power supply).

Power consumption

max 50W (excluding external and PoE consumers)

Mounting

On DIN-rail; on vertical surface

Resistance to mechanical influences

sinusoidal vibration from 10 Hz to 500 Hz; single shocks 50 g; multiple shocks 25 g, 1000 pieces

Degree of protection

IP30

Operating temperature

minus 40 °C to plus 55 °C

Weight

not more than 2,1 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
