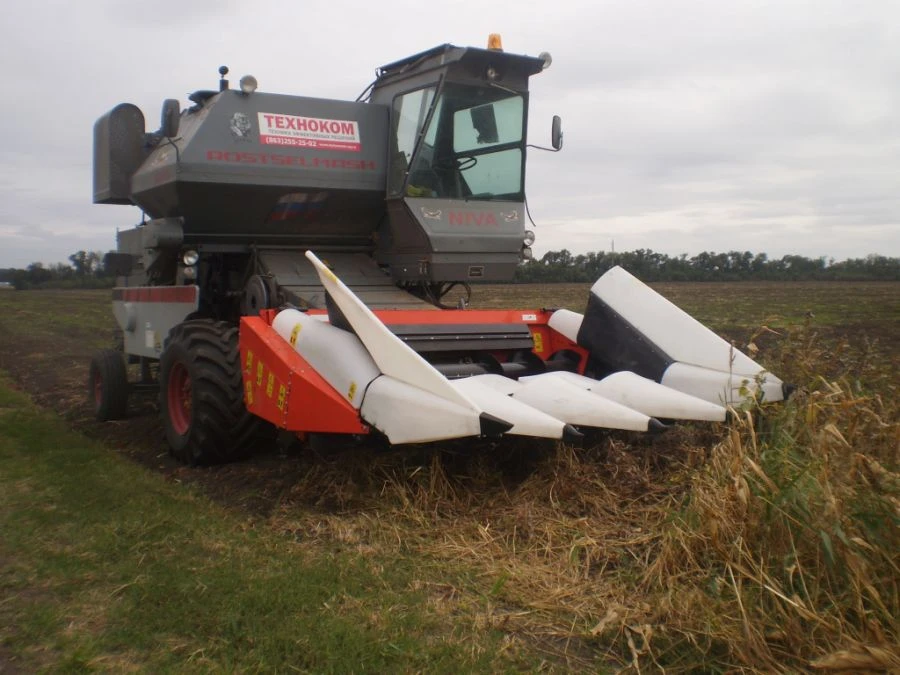

Maize harvester OROS RUS 2R model

ROW RIDDLE RUNNING ROADS
Installed on a metal frame, equipped with cast iron rollers with ribbed and flat working plane (6 ribs on each roller), located under the cone, not parallel, create the effect of capturing and tightening the stalk mass, qualitatively crush the stalk mass along and feed to the shredder knives, which are located under the pulling rollers, that is, simultaneously with the process of capturing is cut by a fixed stalk (5-7cm.). The cob is separated from the stalk on the cob separator plates and fed to the auger with the help of spoon chains. This design sends only the cobs for threshing without overloading the combine with unnecessary stalks. This allows you to maximise the capacity of your combine while saving on fuel.
PULLING ROLLERS
Equipped with removable ribbed plates (1) that crush and pull the stalk down to the chopper. From the winding of the stalk mass, the rollers ...
