Available for Import

Main Grounding Bus GZSH.10-430.510.14M8-M for Electrical Safety Solutions

Electrical Circuit Devices

Manufacturer: ELMASHPOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Main earthing bar GZSH.10-430.630.18M8-ML Main earthing bar GZSH.10-430.450.12M8-M

Description

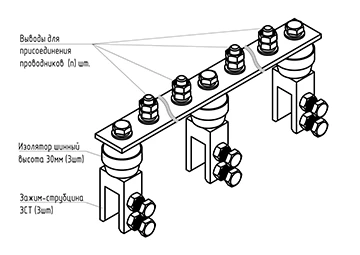

Main earthing busbar, copper 510 x 30 x 4 mm with 14 M8 pins, on insulators 30 mm high for fastening to metal structures with thickness from 3-9 mm with the help of a clamp-pin. Busbar, which is part of the earthing device of the electrical installation up to 1 kV and is designed to connect several conductors for the purpose of earthing and equipotential bonding

Specifications

Size

104-30-510 mm

Weight

1.223 kg

Material

Tire material - copper

Material

insulator material - polymer

Material

Material of the clamp-pliers - hot-dip galvanized steel according to GOST 9.307-2021

Type

main ground busbar

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
