Main Grounding Bus GZSH.10-430.300.8M8-ML for Electrical Safety

Electrical Circuit Devices

Manufacturer: ELMASHPOM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Main earthing bar GZSh.10-430.210.5M8-ML Main grounding busbar GZSH.10-430.270.7M8-ML Main earthing bar GZSH.10-430.240.6M8-M

Description

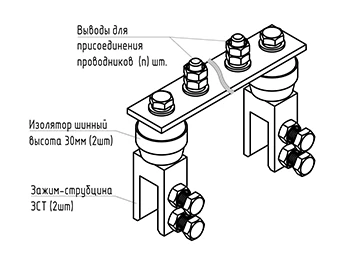

Main earthing busbar, tinned copper 300 x 30 x 4 mm with 8 M8 pins, on insulators 30 mm high for fastening to metal structures with thickness from 3-9 mm with the help of a clamp-pin. Busbar, which is a part of earthing device of electrical installation up to 1 kV and designed to connect several conductors for the purpose of earthing and equalisation of potentials

Specifications

Size

104-30-300 mm

Weight

0.734 kg

Material

Bus material - tinned copper

Material

insulator material - polymer

Material

Material of the clamp-pliers - hot-dip galvanized steel according to GOST 9.307-2021

Type

main ground busbar
