Main Busbar for AC Power 2500A IP55 (IP65) SHMA 5

Available for Import

Main Busbar for AC Power 2500A SHMA 5 - Ideal for Industrial Use

Electrical Circuit Devices

Manufacturer: SOEMI OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

AC busbar trunk line ??? 5 1600? IP55(IP65) AC trunk busbar trunk line ??? 5 5000? IP55 (IP65) AC busbar trunk line ??? 5 3200? IP55 (IP65) AC trunk busbar trunk line ??? 5 4000? IP55 (IP65) AC trunk busbar trunk line ??? 5 2000? IP55 (IP65)

AC busbar trunk line ??? 5 1250? IP55(IP65) AC busbar trunk line ??? 5 1000? IP55 (IP65)

Description

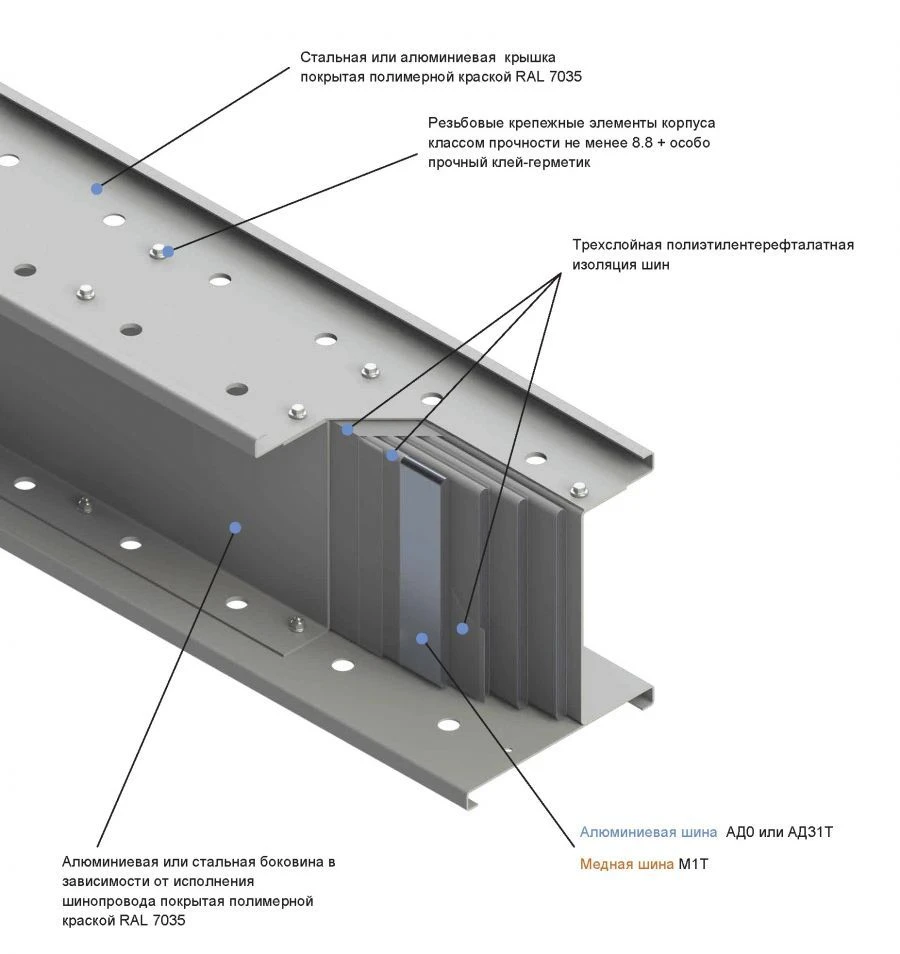

Five-wire aluminium AC trunk busbars SHMA 5 (3L+N(100/200%)+PE(50/100%)+corpus(AI/Fe) are designed for operation in industrial, commercial, administrative buildings; at infrastructure facilities; in multi-storey and multifunctional buildings in electrical networks of three-phase current with frequency 50 and 60 Hz for voltage up to 1000 V.
In terms of electrical characteristics, technical performance and functional purpose of the busbar SOEMI is not inferior to world analogues, and in some aspects it has no equals.

Specifications

Climatic version

Rated current, at ambient temperature + 45°C

2500 A

Rated voltage, max.

1000 V

Frequency

50...60

Protection degree of busbar line assembled in line according to GOST 14254

IP55 (IP65)*

Installed service life with possible replacement of switching devices, not less than

25 year

Installed failure-free operating time, not less than

13500

Tire material

AD0 aluminum

Seismic resistance

7...9 points

Fire resistance

180

Grounding system

TN-C or TN-S

Junction boxes

16...1000 A

Branch pitch

750 mm

Number of conductors

Length of straight section

0.75 m

Cross section of the phase conductor

2210 mm²

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
