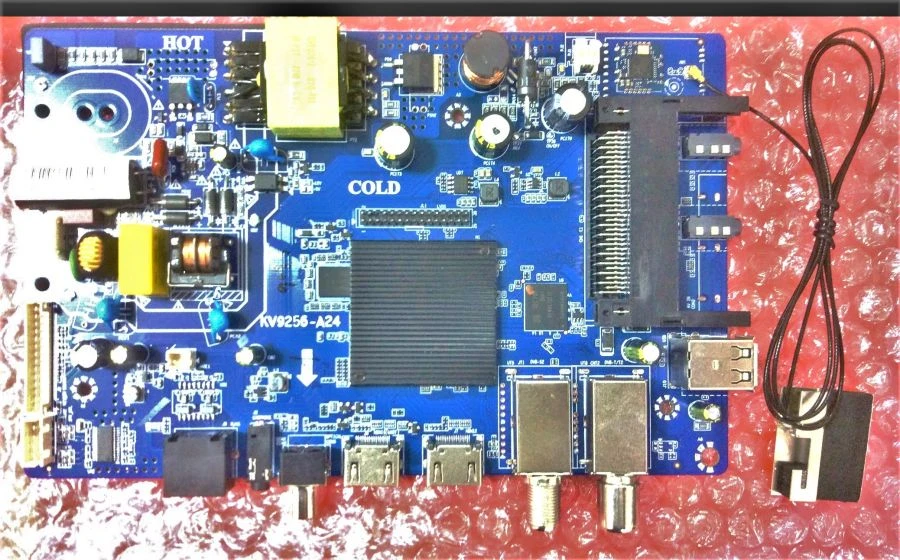

Main board electronic module for HD/FHD Smart 24" TV (code KV9256-A24-040-01)

Mounted Circuit Boards

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

"Electronic module (EM) of the main board for HD/FHD Smart 24" TV (code KV9256-A24-040-01)" is intended for use in serial production of HD/FHD Smart type TV receivers with LCD screens of 24" (60 cm) diagonals in various housings. It is mass-produced to replace imported main boards of digital consumer TV receivers and is compatible with a wide range of component parts (housings, cables, types of LCD glasses, etc.). Supplied with basic software and codes for digital access and data protection services (upon agreement). Additional customised high-level software is available (by agreement).

Specifications

LCD panel type DLED HD-ready

Maximum screen resolution 1366x768

Number of tuners 2 pc

Types of received TV signals DVB-S2/DVB-S/DVB-T2/DVB-T/DVB-C/ATV

Number of speakers and sound output power 2 x 5W

WiFi and LAN and Bluetooth 802.11 a/b/g/n and 100/10Mb and version 4.2

SMART Android version and Shell (bootloader) 11.0 version, AOSP customized

Interfaces RF 75 ohm antenna input, DVB-S2/S input, composite AV input, component YPbPr input, 2xHDMI input, coaxial audio output, 2xUSB 2.0, CI+, LAN, headphone input.

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
