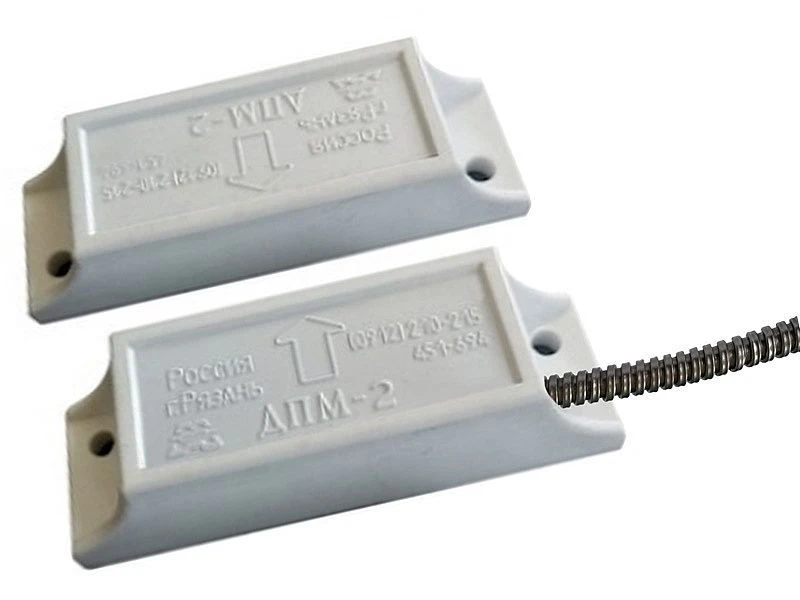

Magnetic Reed Position Sensor DPM-2 for Reliable Security Applications

Magnetic reed position sensor DPM-2 is designed to block gates, railway containers, hangars, car doors, lifts and other structural elements of buildings and structures made of magnetically conductive materials (steel, cast iron, galvanised iron, etc.) and non-magnetically conductive materials, on opening or displacement with the issuance of a signal by opening (switching) dry contact reed switch, as well as in automation systems of various devices. The reed switch unit can be manufactured with NAMUR contacts, providing logical recognition of typical line faults: open circuit and short circuit (short circuit) in accordance with IEC60947-5-6 standard. The design of sensors is two-unit (reed switch unit, magnet unit). The housings of the 0-th series (version 04) are made of plastic. The type of output is metal hose.
