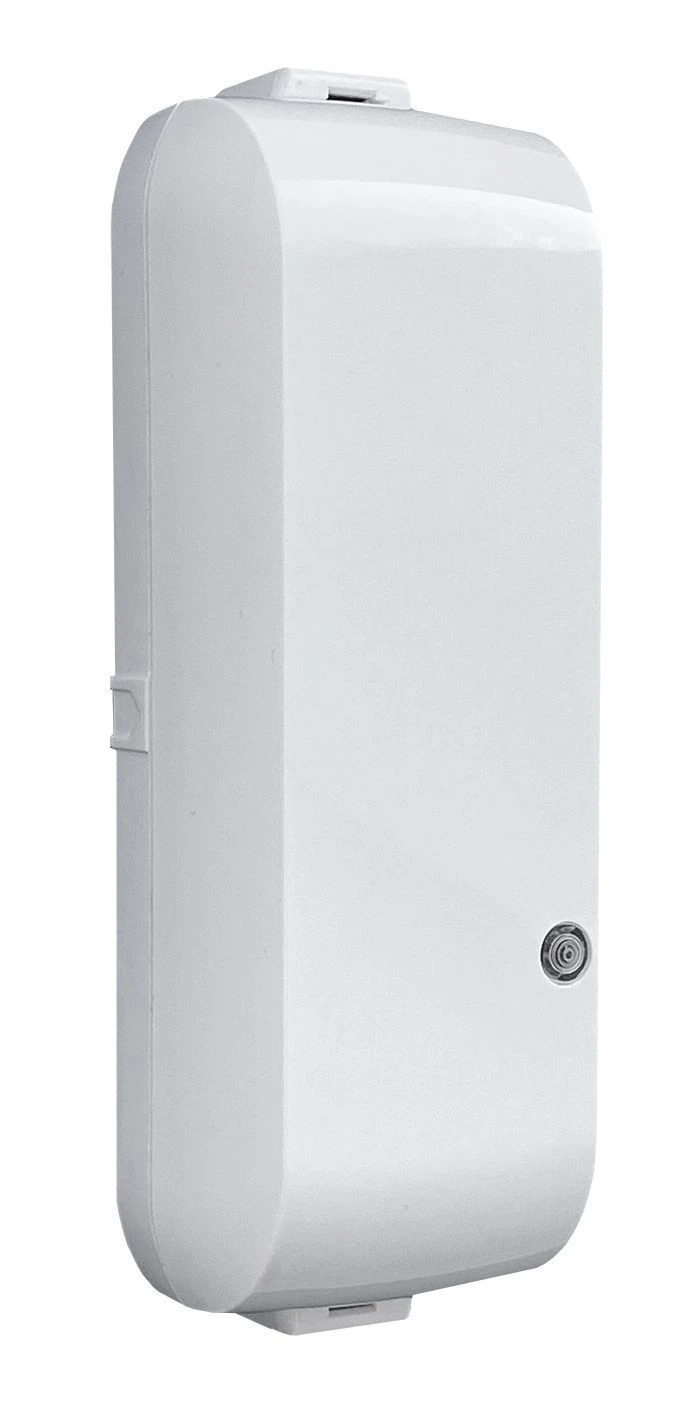

Magnetic contact addressable intrusion detector IO102-42 RIG-I

The detector security magnetic contact addressable "RIG-I" is designed to detect intrusion into the protected space through door and window openings and the formation of alarm notification. The detector is designed to work as part of the integrated security system "Strelets-Integral" and to be installed in closed rooms. The detector has a built-in magnetically controlled contact and an input for connection of a security or fire alarm loop. The contact actuation distance in the detector is not less than 5 mm, the opening distance is not more than 15 mm. The detector is powered via a signal line connected to the signal line unit BSL240-I or another control panel with a similar protocol of exchange between the control panel and the detector. The overall dimensions of the detector are 108x37x30 mm. The weight of the detector is not more than 0.1 kg. The design of the detector provides a degree of protection shell IP41 in accordance with GOST 14254-96.
