Magnetic compass Azimut-KM05D

Directional Compasses

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The device is designed to determine ship's course in all areas of navigation, including high latitude zones with horizontal component of magnetic field more than 3 µTL, which for northern areas is up to 84°N. Features: - Built-in digital gyroscopic automatic course correction system, providing stabilisation of its readings in rolling and yawing conditions of the vessel with information output to the digital display repeater; - Half-circle, roll, quarter and latitude deviation compensators; - Telemetric transmission of magnetic heading; - Possibility of automatic input of correction for magnetic declination from GPS and GLONASS receivers; - Compass instruments do not require amortisation and special cooling.

Technical Specifications

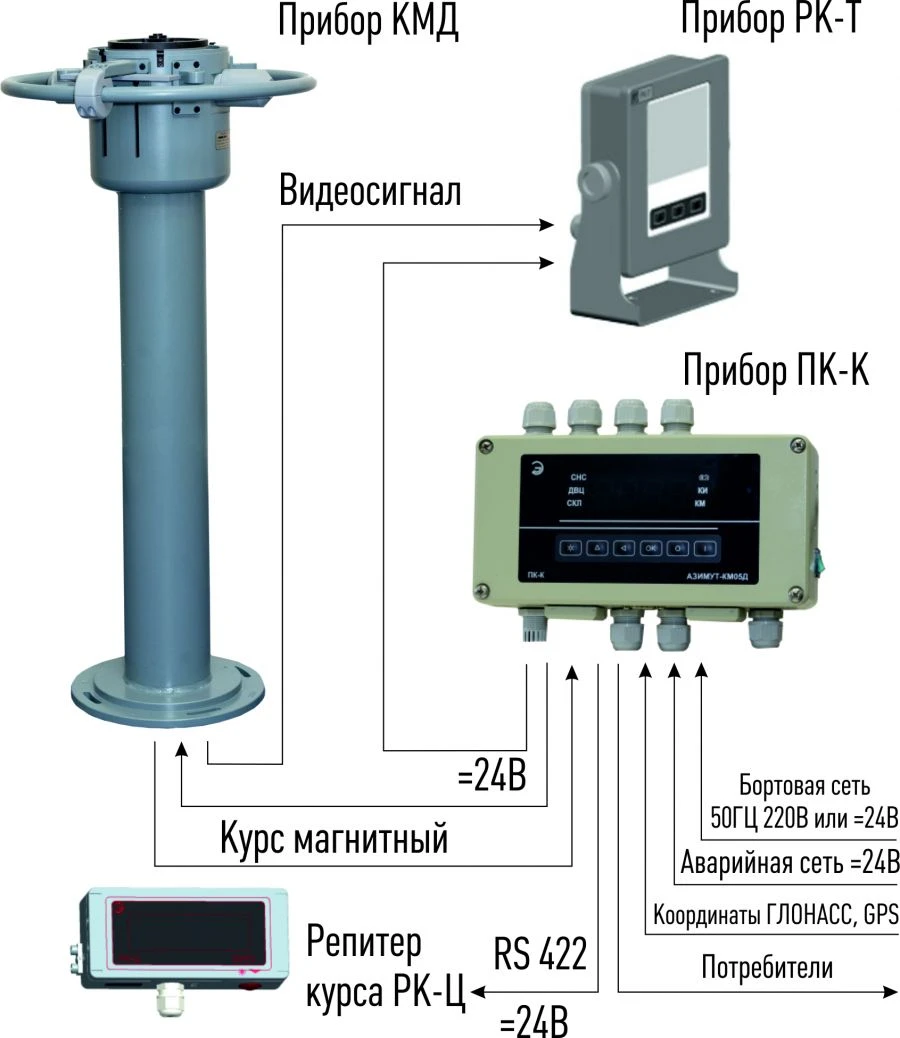

Equipment	Magnetic compass on high nakkouz, Repeater telemetric (television) remote course transmission, Direction finder, Combined compass device, Set of operational documents
Instruments and self-supply kits	Digital heading repeater, Power filter, Passive connection box for connecting multiple repeaters to compass, Spare parts kit (includes spare compass pot)
Cartridge diameter	125 mm
Scale value	1 degree (flat angle)
Angle of axis pumping	Up to +/- 45 degrees (flat angle)
Communication interface	IEC 61162-1 (NMEA 0183) with electrical signal parameters according to EIA RS-232-C or EIA RS-422-A.
Power supply from bot network	50 Hz 220 V or =24 V
Power consumption	not more than 20 W
Assigned service life	60000
Full Magnetic Compass Assigned Life Before Write-Off	15 a

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
