Available for Import

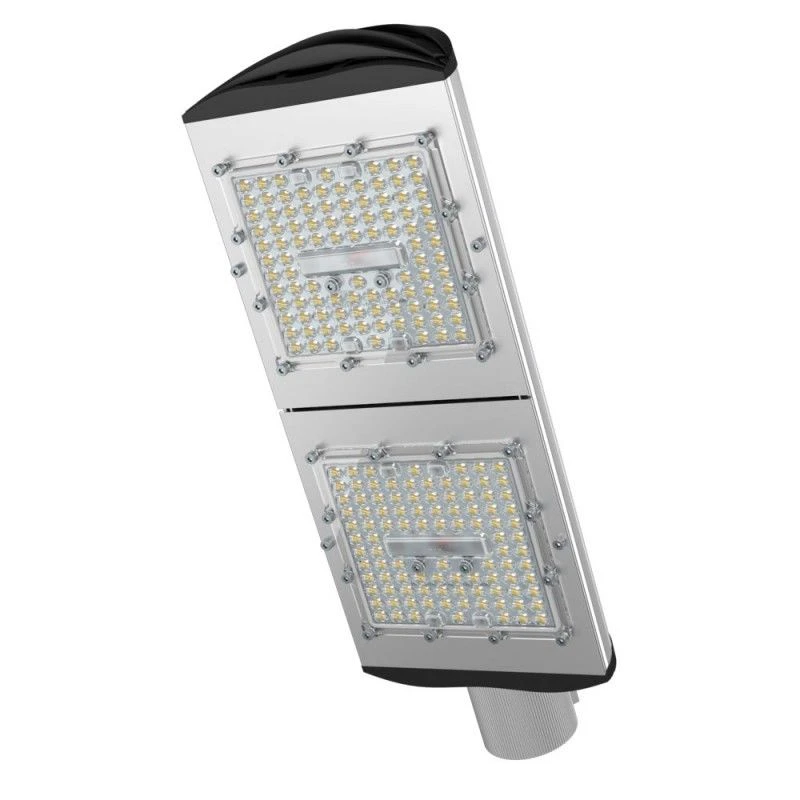

Magistral v3.0 Multilens series luminaires (101 - 130)

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Series of outdoor LED luminaires for lighting: motorways, federal highways and local roads, streets, neighbourhoods and squares, outdoor areas of industrial facilities, adjacent territories. Series of luminaires with modifications "Eco" (average efficiency - 154 lm/W) and "Extra" (average efficiency - 160 lm/W). The advantage of the series is the ability to replace the LED module and power supply without dismantling the luminaire.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Power 101...130 W

Type of supply current AC

Upper operating value. Temperatures SBVVBG °C

Lower operating value. Temperatures -60 °C

Supply voltage, [V] 176...264 V

Power factor (Pf) 0,98

Protection class against electric current II

Luminous flux 10100...26000 K

Height 97 mm

Width 172...174 mm

Length 446 mm

Housing material Die-cast aluminum

Mounting type Cantilever

Climatic execution (according to GOST 15150-69) UHL1

Color rendering index (CRI) Flat grinder, Specialised grinder

Color temperature, Kelvin 6500 K

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011) IP67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
