Machinery and equipment for public utilities: plough and bulldozer equipment (mouldboards mounted) municipal mouldboard

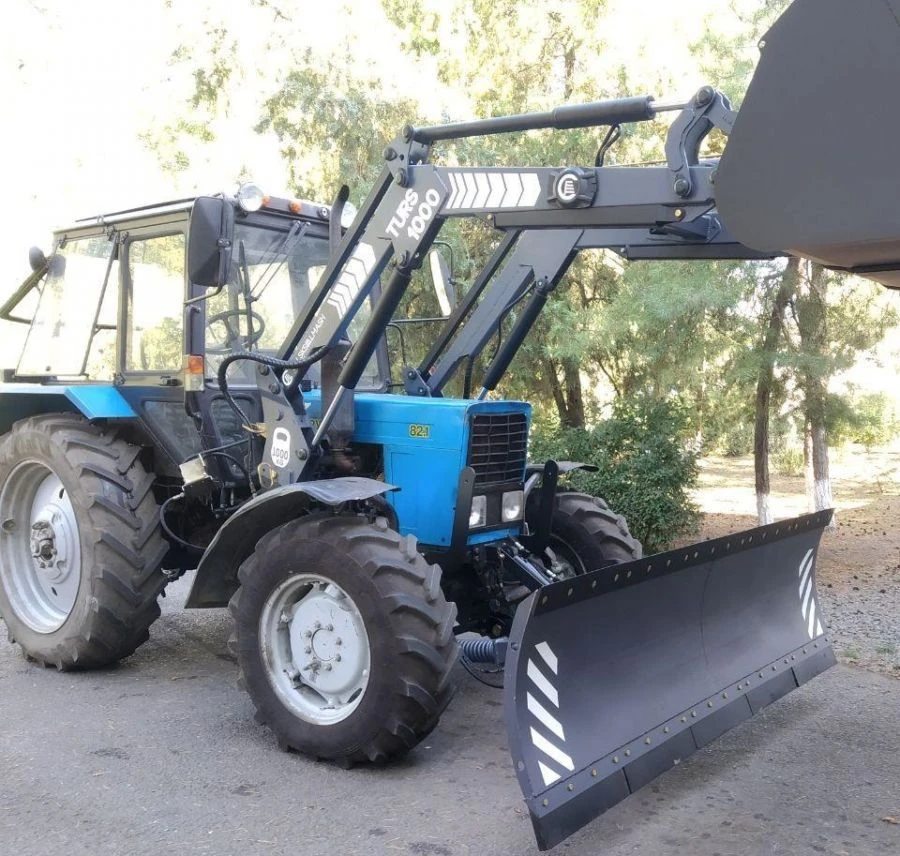

The municipal rotary blade is designed for cleaning streets, roads, pavements and other areas from rubbish, snow, ice, sand deposits by raking. Municipal rotary mouldboard with double-sided shovel KOO-2,5 is a mounted multifunctional equipment, which is mounted on MTZ-80, MTZ-82, MTZ-82.1 (with reinforced axle), MTZ 1025 tractors. Shovel blade is made of six-millimetre steel and is equipped with stiffening ribs. At the same time it is equipped with metal blades for light planning works on soils of I and II categories on one side of the shovel and rubber scrapers for work with loose materials on the other side, respectively.
The angle of blade rotation is ±30? , thanks to which the transported mass can be shifted to one side or the other.
