M20x144 Hex Head Bolt - Versatile and Durable Fastener for Various Applications

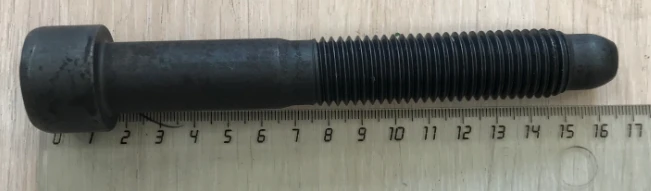

Cylindrical head screw with internal hexagon. Size under the key - 17 mm, head height - 20 mm, head diameter - 30 mm, rod length - 144 mm, thread - M20h2,5-6e, thread length - 30 mm, diameter of the smooth part of the rod - 20 mm, length of the guiding end - 14 mm, diameter of the guiding end - 16 mm. Screw 2700.038.0 is a fastening product, the field of application - automotive industry.

The method of manufacture - cold volume forging from steel wire with subsequent thread rolling and heat treatment. Material - steel 09320 (analogue - steel 30G1P TU 14-1-5490-2014).
