Available for Import

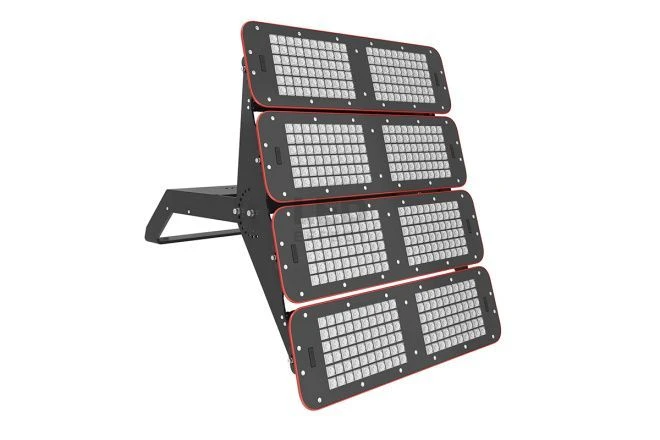

Luminaire with LED light source of URAN LE-SBU-66 series with power 300-1200W
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Series URAN - powerful LED luminaires of modular type for lighting stadiums and multifunctional sports complexes.
The innovative FINFREE heat dissipation technology was used in the development of the luminaire series.
The luminaires are designed for mounting on lighting trusses, equipped with a bracket with discrete adjustment of the angle of inclination of the luminaire, there is also an adjustment of the angle of inclination of each light section of the luminaire, which allows optimal targeting of the luminaire. The luminaires are equipped with specially selected LEDs with high CRI and TLCI indices, which avoid colour distortion during TV broadcasts.
The luminaires are available in the modification with power supply on board, also possible version with remote power supply.
The luminaires have a high degree of protection against environmental influences - IP67.
The innovative FINFREE heat dissipation technology was used in the development of the luminaire series.
The luminaires are designed for mounting on lighting trusses, equipped with a bracket with discrete adjustment of the angle of inclination of the luminaire, there is also an adjustment of the angle of inclination of each light section of the luminaire, which allows optimal targeting of the luminaire. The luminaires are equipped with specially selected LEDs with high CRI and TLCI indices, which avoid colour distortion during TV broadcasts.
The luminaires are available in the modification with power supply on board, also possible version with remote power supply.
The luminaires have a high degree of protection against environmental influences - IP67.
Specifications
Type of luminaire
spotlight
Color temperature
2700...5700 K
Type of supply current
AC
IK code
8
Upper operating temperature value
SBVVBG °C
Rated supply voltage
220...230 V
Power consumption, W
300...1200 W
Power factor
0.95
Correlating color temperature (CCT)
2700...5700 K
Color rendering index (Ra)
80...98
Protection class against electric current
I
Lower operating temperature value
40 °C
Light distribution class
?
Power
300...1200 W
Pulsation factor
1 %
Ripple factor, less than or equal to
1 %
Luminaire length
950 mm
Luminaire width
750 mm
Luminaire height
190 mm
Pulsation factor
1 %
Power
300...1200 W
ELECTRICAL SAFETY CLASS.
1
Light distribution class
?
Lower operating temperature value
45 °C
Protection class against electric current
1(2)
Color rendering index (Ra)
80...95
Correlating color temperature (CCT)
2700...5700 K
Power factor
0.95
Power consumption, W
300...1200 W
Rated supply voltage
220...230 V
Upper operating temperature value
SBVVBG °C
IK code
8
Type of supply current
AC
Color temperature
2700...5700 K
Type of luminaire
spotlight
PWM, 0-10V, 1-10V, DALI, PLS, DMX control options.
Armoured glass
Possibility to equip with a connector for tool-less connection of a control system module (Nema / Zhaga or other)
Armoured glass
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
