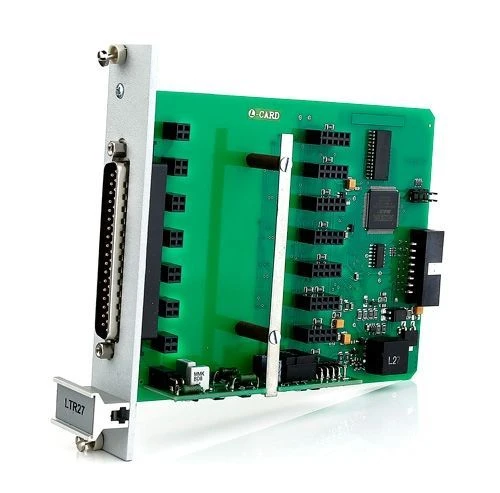

LTR27 measuring module

Electrical Measurement Systems

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The LTR27 measuring modules include H-27 measuring transducers for measuring voltage or DC current or electrical resistance to DC current. They are part of the LTR measuring units. The specific set of measuring transducers for LTR27 measuring modules is determined from the list: H-27U01, H-27U10, H-27U20, H-27T, H-27I5, H-27I10, H-27I20, H-27R100, H-27R250. The maximum number of transducers in the measuring module LTR27 is 8 pcs. LTR27 collects data from a large number of sensors measuring slowly changing physical quantities with voltage, current, thermocouple or RTD sensor outputs, as well as independent measurement circuits. Individual galvanic isolation of measurement channels simplifies the process of building multi-channel measurement data acquisition systems, provides high reliability and noise immunity.

Technical Specifications

Measuring range of direct current force for H-27I10	-10 mA to +10 mA A
Measuring range of direct current force for H-27I20	0 to +20 mA A
DC voltage measuring range for H-27U01	-1 to +1 V
DC voltage measurement range for H-27U10	-10 to +10 V
DC voltage measurement range for H-27U20	0 to +20 V
DC voltage measuring range for H-27T	from -0,025 to +0,075 V
Limits of permissible reduced (to the sum of modules of measurement limits) basic error of DC voltage measurements	±0,05 %
DC current measurement range for H-27I5	0 to +5 mA A
Limits of permissible reduced (to the sum of modules of measurement limits) basic error of direct current force measurements	±0,05 %
Measuring range of DC electrical resistance for H-27R100	0 to 100 ohm
Measuring range of DC electrical resistance for H-27R250	0 to 250 ohm
Limits of permissible reduced (to the upper value of the measuring limit) basic error of electrical resistance measurements	±0,05 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
