LTE Cat.6 Modem Router with SIM Injector Rt-Ubx RSIM DS eQ-EP for Unstable Signal Areas

Communication Devices

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

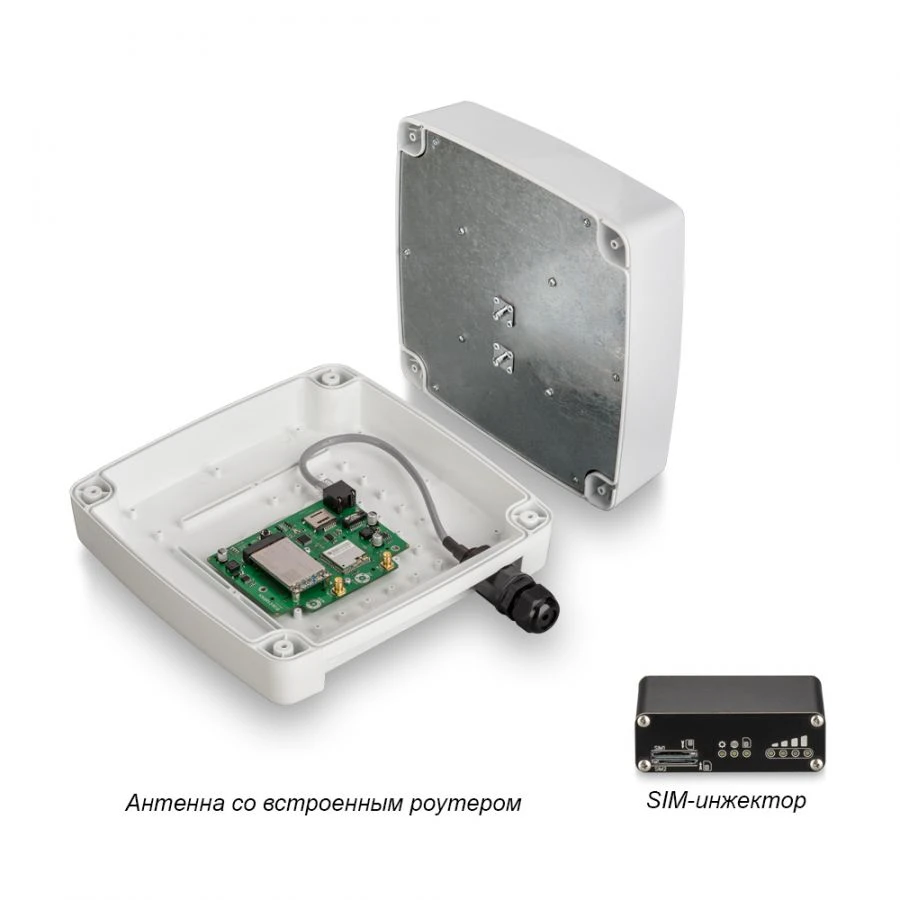

This kit is a ready-made solution for providing the Internet office, cottage or private home in areas of uncertain signal reception. The kit supports 4G (LTE1800, LTE 2300, LTE 2600), 3G (UMTS2100) standards of all mobile operators. Sealed antenna housing provides reliable mounting of the router and its protection from unfavourable weather conditions.

The router is equipped with a high-speed 4G LTE-A (Cat. 6) mini-PCI modem Quectel EP06-E, operating in a wide range of frequencies.*- 2×CA - aggregation of several carrier (adjacent and non-adjacent) frequencies is used for simultaneous reception and transmission of data using several frequency bands. LTE-Advanced technology supported by the modem provides for bandwidth expansion, frequency band aggregation, advanced multi-antenna MIMO capabilities and a significant increase in transmission speed up to 300 Mbps in the incoming channel and up to 50 Mbps in the outgoing channel..

Specifications

Equipment

Directional antenna KAA15-1700/2700 U-BOX in hermetically sealed case

MIMO support

MIMO 2x2

Operating frequencies

3G - WCDMA - B1/B3 - 2100/1800 MHz

Modem baud rate

G - up to 300 Mbps (receive) / 50 Mbps (transmit)

Ports and interfaces

Ethernet ports - 1 pc, 100 Mbps

Memory

Ram 64 MB Rom 16 MB

WiFi transmitter power

20 dBm (100 mW)

Wi-Fi standard

802.11b/g/n

Processor frequency (CPU)

580 Mhz

Power Type

Passive PoE 24 V

LAN port speed

10/100

Number of LAN ports

1 pcs

Number of SIM cards

2 pcs

Number of modems

1 pcs

LTE Category

LTE cat.6

Interfaces

WAN, WiFi 2.4 GHz

Standard

WCDMA, LTE-FDD, LTE-TDD, 2xCA

Antenna connector

RP-SMA (female) - for connection of external Wi-Fi antennas - 2 pcs.

Length

295

Width

250

Height

115

Weight

2300

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
