Available for Import

Low pressure heaters. Type PN

Industrial Heat Exchangers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Low pressure heaters are designed for heating feed water in regeneration systems of stationary steam turbines of thermal power plants.

Device, principle of operation

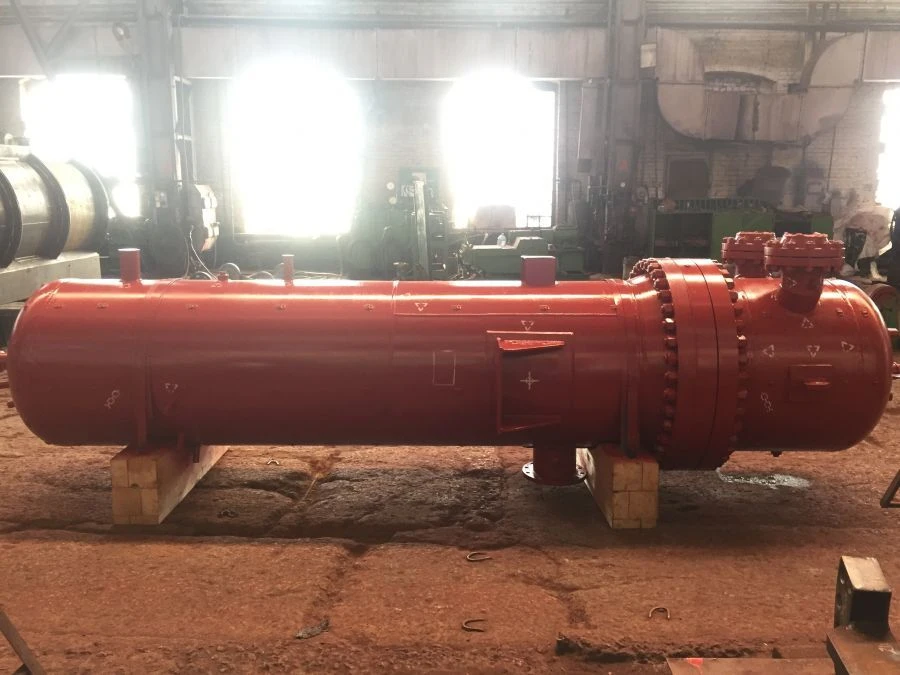

Low-pressure heater is a shell-and-tube heat exchanger of vertical and horizontal type, the main units of which are: body, pipe system, water (distribution) chamber.
Assembly of units is carried out with the help of flange connection, providing the possibility of their preventive inspection and repair.

Description of the vertical heater:
The heater body consists of a cylindrical shell, an elliptical bottom and a flange for connection to the pipe system and the water (distribution) chamber.
The tube system consists of a tube board, a frame, U-shaped heat exchanger tubes, the ends of which are flared in the tube board.
The frame of the tube system is formed by: frame struts (channels and pipes), transverse partitions directing the steam flow and serving as intermediate ones.

Technical Specifications

Heat exchanger surface area	250
Length	3600...11615 mm
Diameter	630...2444 mm
Assignment	Heating of mains water
Power	8700...119200 kW
Frame number	??-250.387.02.02.000
Dimensions	300 mm
Screed size	30 mm
Working pressure	0.69 MPa
Type	PN
Designation	??-280-1,57-0,69-1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
