Available for Import

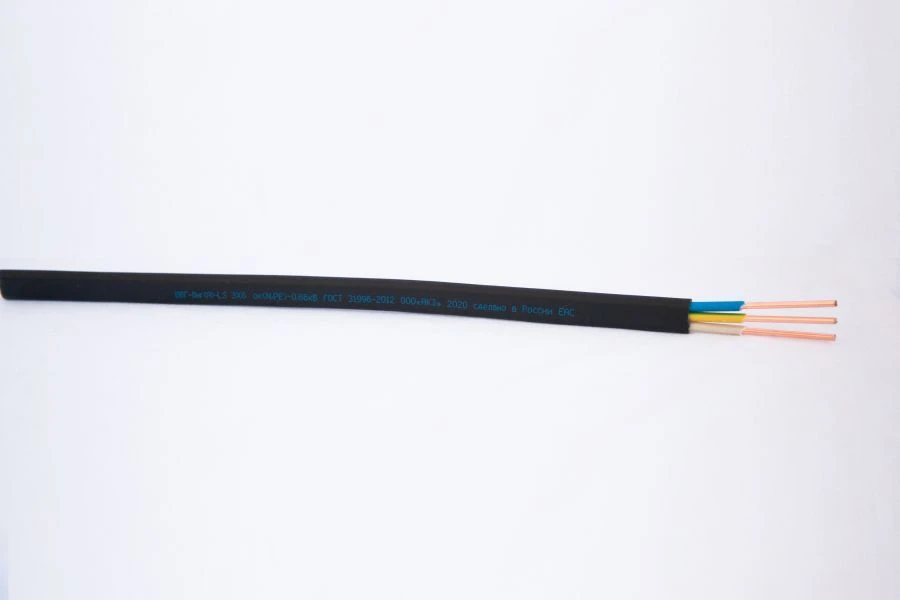

Low-Flammability Power Cables VVG-Png (A) -LS for Enhanced Safety in Electrical Systems

Copper Power Cables 1kV

Manufacturer:AKZ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Power cables with copper conductors with insulation and sheathing made of polyvinylchloride plasticate, including reduced flammability and reduced danger of VVG-Png (A) -LS

Specifications

Rated AC voltage

1...66 kV

Nominal cross-section of conductive cores

1 mm²

Number of conductive cores

2.3

Material of conductive cores

Copper

Number of conductive cores

Design of conductor core(s)

Round copper core

Insulation material of conductive cores

PVC plasticate of reduced fire hazard with distinctive coloring

Availability of reservations

No armor

Armor type

No armor

Fire hazard class

P1b.8.2.2.2.2.

Cable cross-sectional shape

Flat

Mark

VVG-Png (A) -LS

Cable shape

Flat

Insulation material

PVC plasticate of reduced fire hazard with distinctive coloring

Sheath material

PVC plasticate of reduced fire hazard

Design

conductive copper core, insulation, sheath, armour, protective hose

Number of wires in the core

1 pcs

Number of cores

3 pcs

Core cross section

1 mm²

Operating voltage

1...66 kV

Size (Number of cores x Cross-section)

2x1,5 2x2,5 2x4 2x6, 2x10, 3x1,5 3x2,5 3x4, 3x6, 3x10

Outer sheath material

PVC plasticate of reduced fire hazard

Protective hose material

PVC plasticate of reduced fire hazard

Limit core heating temperature under the condition of non-combustion at short circuit

350 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
