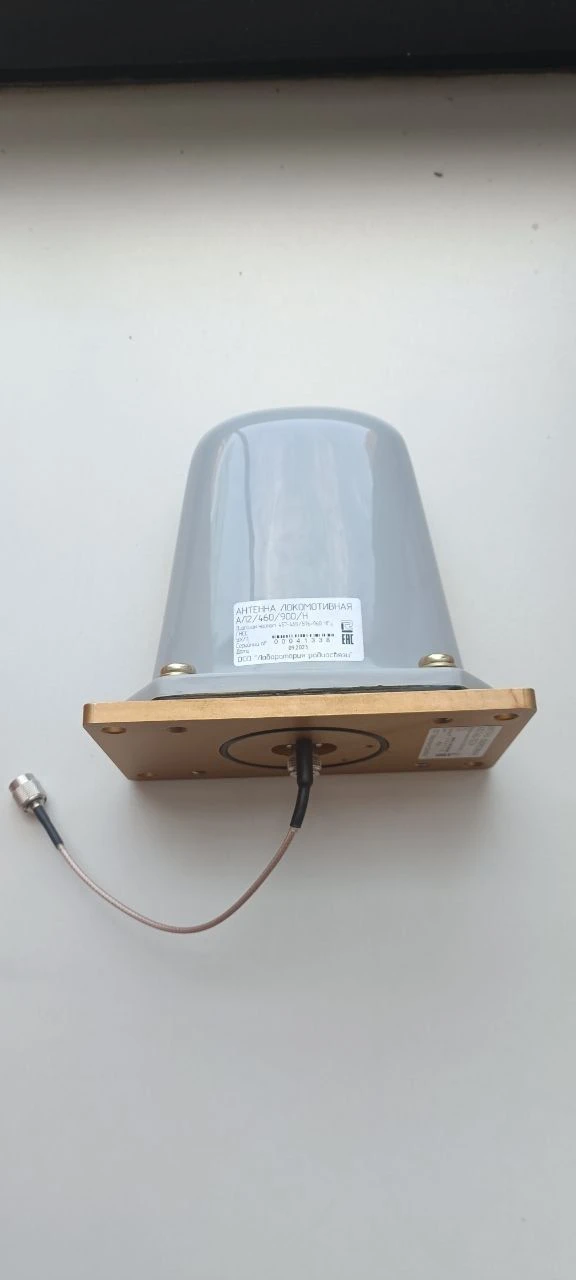

Locomotive antenna AL2/460/900/H

Antenna Equipment & Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Antenna locomotive AL2/460/900/H CD ALVR.464651.008 is manufactured in accordance with the requirements of technical specifications 65 7700-011-62837180-10 TU, designed to work on mobile objects of railway transport in the decimetre wave range together with locomotive radios for the transmission of speech and data in TETRA and GSM-R/GSM900 standards, as well as part of location systems of GLONASS and GPS standards. The antenna has a built-in antenna and low-noise amplifier (LNA) for pre-amplification of received signals of GLONASS and GPS systems.

Technical Specifications

Polarization	Vertical
Weight	1 kg
Power supply voltage	13.2 V
Operating wind speed	432
Connector	N-type socket for decimetre antenna and TNC-type plug for GLONASS/GPS.
Power consumption	0.12 W
Equipment	Antenna, passport, packaging
Gain factor of the built-in LFM	27...29
Antenna gain	Not less than 0 dB
Horizontal directional pattern	Close to circular with deviation not more than 3 dB
Wave impedance	SBVVBG ohm
Operating conditions	The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2
VSWR	Not more than 1.5
Operating frequency range	457.0-469.0; 876.0-960 MHz
Degree of protection in operating position	IP66 according to GOST 14254-2015
Dimensions	(WxDxW) 185x181x110 mm
Maximum power	SBVVBG W
Power supply voltage of the built-in MSHU	3.3...13.2 V
Current consumption of the built-in MSI	0.036 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
