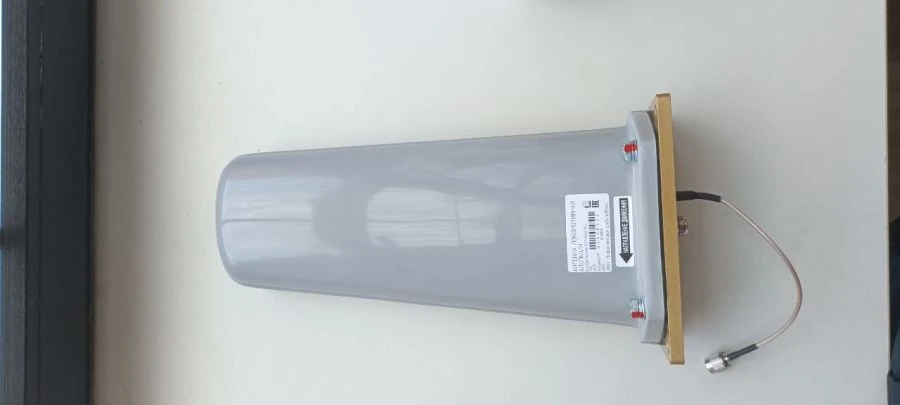

Locomotive Antenna AL1/160/N for Enhanced Radio Communication in Trains

Antenna Equipment & Parts

Manufacturer: Radio Communication Laboratory LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Antenna locomotive AL1/160/H CD ALVR.464641.007 is manufactured in accordance with the requirements of technical specifications 65 7700 5-001-62837180-11 TU. It is intended for operation as a part of locomotive radio stations of railway radio communication and radio facilities of railway traffic safety systems in the metre wave range. It has an antenna and MSHU for reception of satellite signals GLONASS/GPS.

Specifications

Polarization

Vertical

Weight

1.9 kg

Power supply voltage

13.2 V

Operating wind speed

432

Connector

N-type socket for meter antenna and TNC-type plug for GLONASS/GPS

Power consumption

0.12 W

Equipment

Antenna, passport, packaging

Antenna gain

At least 0 dB with respect to the quarter-wave radiator in the operating frequency band.

Gain factor of the built-in LFM

27...29

Current consumption of the built-in MSI

0.036 A

Power supply voltage of the built-in MSHU

3.3...13.2 V

Maximum power

100 W

Dimensions

(WxDxW) 370x185x110 mm

Degree of protection in operating position

IP66 according to GOST 14254-2015

Operating frequency range

151.7...156

VSWR

Not more than 1.5

Operating conditions

The antenna is designed for operation on all mobile objects of railway transportation in train radio communication networks in the following conditions: - ambient temperature from minus 50 C to plus 60 C; - relative humidity 93 % at temperature plus 2

Wave impedance

SBVVBG ohm

Horizontal directional pattern

Close to circular with deviation not more than 3 dB

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
