Available for Import

Load Distribution Traverse Type 1-3.0-5000 for Safe and Efficient Lifting

Material Handling Equipment

Manufacturer: SAMSON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Traverse beam type 1-2,0-8000 Traverse beam type 1-6,0-5000 Traverse beam type 1-16,0-1000 Traverse beam type 1-4,0-8000 Traverse beam type 1-0,63-1000

Traverse beam type 1-8,0-6000 Traverse beam type 1-12,5-8000 Traverse beam type 1-3,0-3000 Traverse beam type 1-2,0-1000 Traverse beam type 1-16,0-6000 Traverse beam type 1-10,0-2000 Traverse beam type 1-3,0-4000 Traverse beam type 1-10,0-6000 Traverse beam type 1-6,0-6000 Traverse beam type 1-5,0-5000 Traverse beam type 1-6,0-3000 Traverse beam type 1-3,0-6000 Traverse beam type 1-2,0-10000 Traverse beam type 1-3,0-2000

Description

"Lifting beams are necessary to distribute the load evenly between all load anchorages, they protect the lifted load from compressive forces and ensure its safety when moving.

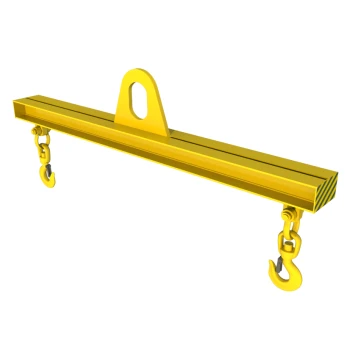

The traverse beam is a beam structure made of channels reinforced with sheet metal plates. The upper beam is equipped with a hook suspension, the lower beam has suspensions for slings and load-carrying equipment. The crossbeam is attached to the hoisting equipment by means of an eyelet brace or suspension.

As the crosshead is attached directly to the crane's working body, it allows to use the full useful height when lifting the load, but it is necessary to centre the load in order to avoid overweighting of the load on one of the sides when lifting.".

Specifications

Payload

3 t

Crosshead length

5 m

Diameter of the bottom eyelet bore

14 mm

Product weight

288.1 kg

Designation

??001-3,0-5000

Suspension size of top eyelet

150x230 mm

Manufacturer's item

30100043077

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
