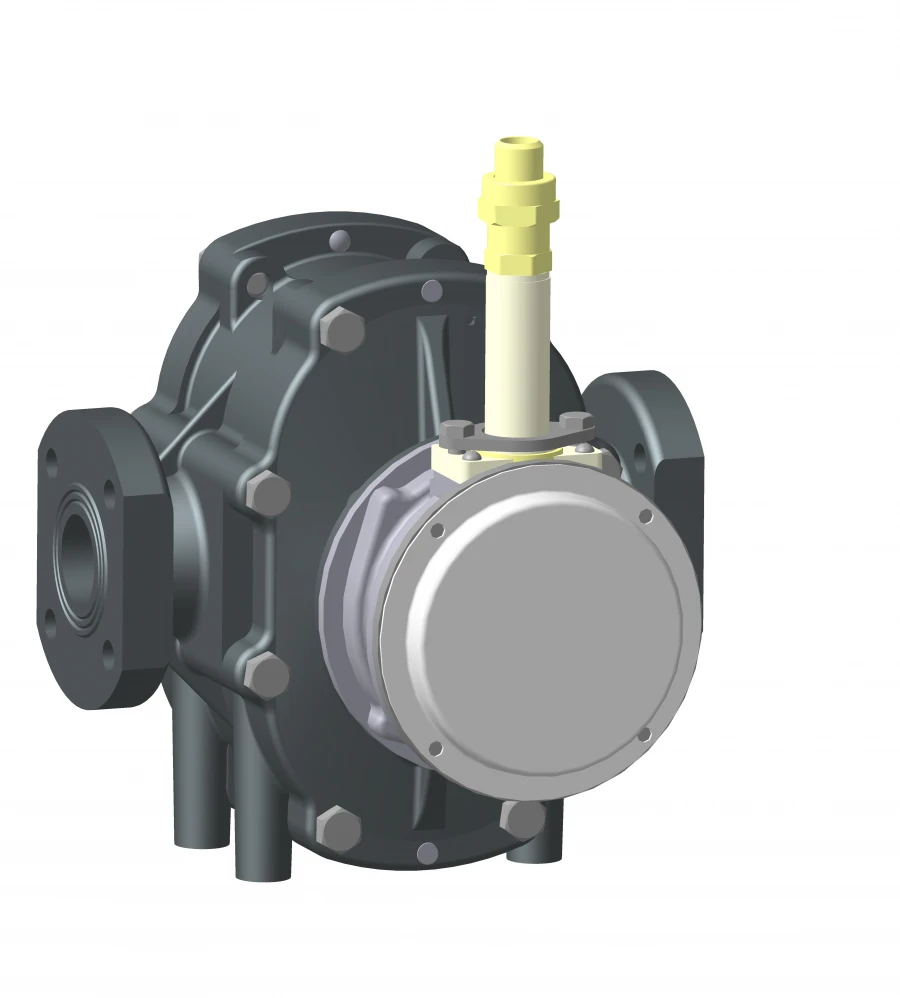

Liquid meter SZh-PPO-40-0,6-DI-O-5 06-70-1.10.00 (1,1-6,0 cSt; GHG 0,25)

Liquid counters with oval pinions PPO are designed to measure the volumetric quantity of non-aggressive petroleum products. Diameter of conditional passage 40mm.

In this configuration the liquid meter is equipped with an intelligent sensor DI-O-5 (having pulse and interface output RS-485). Upon customer's request, the interface board "Advantech PCI-1602 B-A", software ("Filling and draining operator's workstation for flowmeters") and external connection box of KP type, designed for connection and branching of flexible cables in hazardous areas, can be supplied additionally. Personal computer, in this case, is available at the consumer.

The flowing part of the meters is made of materials:
- body - aluminium AK9M2 GOST 1583-93;
- oval gear - aluminium AK9M2 GOST 1583-93;
- seals - rings GOST 18829-73 3826-s-NTA TU 38.0051166-98;
- bronze-graphite bearings.
Liquid meters with oval gears have the following competitive advantages:
- improved...
