Liquid fuel burner APND-2,2 Automated, pneumatic, low-pressure, heat-producing capacity of 2,2 MW.
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

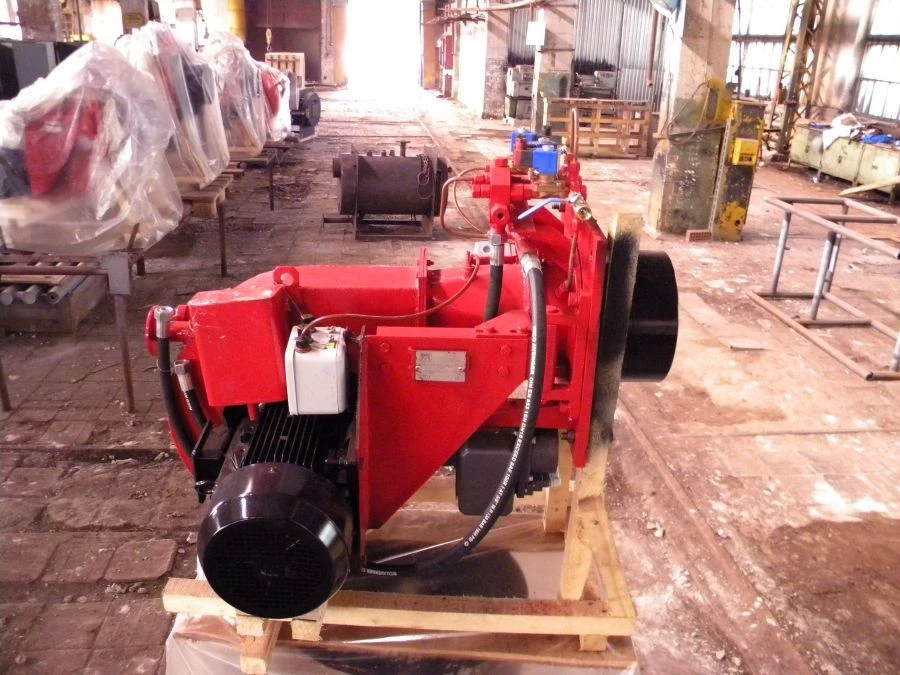

Burner APND-2,2- (Automated pneumatic low-pressure heat capacity 2,2MW) is designed for combustion of liquid fuel in hot-tube boilers under supercharging. The burner operates with overpressure in the boiler furnace up to 600 Pa.
It consists of: a blower fan for supplying and regulating the amount of air for combustion. The air damper is electrically controlled.
Fuel supply regulator - regulation of fuel pressure supplied to the burner, solenoid electric valves and throttles to change the amount of fuel supplied for combustion.
Ignition burner for ignition of the burner.
Flame regulator for regulating the homogeneity.
It consists of: a blower fan for supplying and regulating the amount of air for combustion. The air damper is electrically controlled.
Fuel supply regulator - regulation of fuel pressure supplied to the burner, solenoid electric valves and throttles to change the amount of fuel supplied for combustion.
Ignition burner for ignition of the burner.
Flame regulator for regulating the homogeneity.
Specifications
Burner Mark.
APND-2,2
Rated heat output
2200 kW
Type of fuel
crude oil, diesel fuel, domestic heating oil, gas condensate fuel
Fuel consumption Crude oil.
190 kg/hour
Air pressure upstream of the burner
3000
Maximum pressure in the combustion chamber
600
Excess air ratio at rated heat output
1,2
The power control is positional.
50%; 100%
Power consumption
11.1 kW
Overall dimensions of the burner, mm
1000x950x850
Weight of burner, kg
300 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
