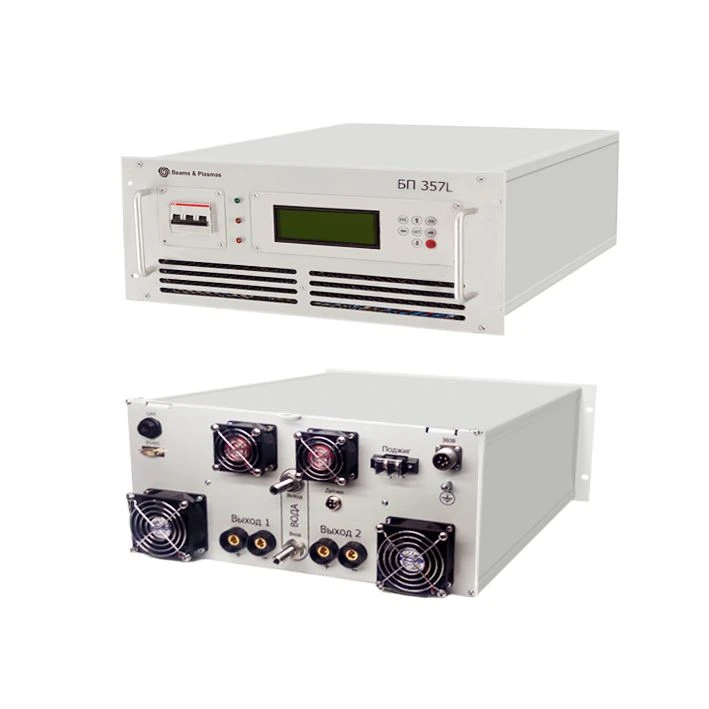

Linear arc evaporator power supply unit BP-357L (2 outputs x 2 arc position sensors x 1 ignition)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The power supply unit is designed for regulated DC power supply of arc evaporator with separator.

The power supply unit is equipped with:
- control and monitoring system with two current channels (2 outputs of 100A each)
- arc position sensor system (1 output for two sensors)
- focussing arc ignition system (1 ignition)
- front panel control
- RS-485 interface for communication with a computer
- Modbus RTU protocol control
- LAN network connector

*Operational Manual is available on request: LCMK.357.00.00.00.00-02 RE POWER SUPPLY BLOCK OF BV-357 arc evaporator.
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment Supply of DC voltage regulated power supply to an arc evaporator used in vacuum coating systems.

Dustproof Yes - The unit housing is made of metal and has no exposed live parts

Type of construction Built-in

Front control panel Got it

Mode of operation continuous

Cooling water

Coolant (recommended)* distilled water, 20% solution of ethyl alcohol in distilled water according to GOST 6709-72

Warranty period 1 a

Climatic designs GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage 380 ±10% V

Output current variation range 20-100 A

Maximum power consumption, max. 8 kW

efficiency, at least 0,85

Arc current source: No-load output voltage 85 ±5% V

Arc current source: Output current variation range 20-100 A

Arc current source: Amplitude of output current ripple, not more than 5 %

Arc current source: Output voltage at arc discharge, at In=80 A 25-40 V

Ignition source: Voltage of initiating pulses, not less than 600 V

Ignition source: Frequency of initiating pulses 25

Ignition source: Initiation pulse energy, not less than 2,5

Magnetic coil current source: Maximum coil current 2,5 A

Magnetic coil current source: Number of coil control outputs 2 pc

Magnetic coil current source: Maximum output voltage 24 V

Magnetic coil current source: Current stabilization accuracy, not worse than 2 %

Interface RS-485

Data transfer protocol ModBus RTU

Overall dimensions, (length x width x height) 482x560x230 mm

Weight, not more 24 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
