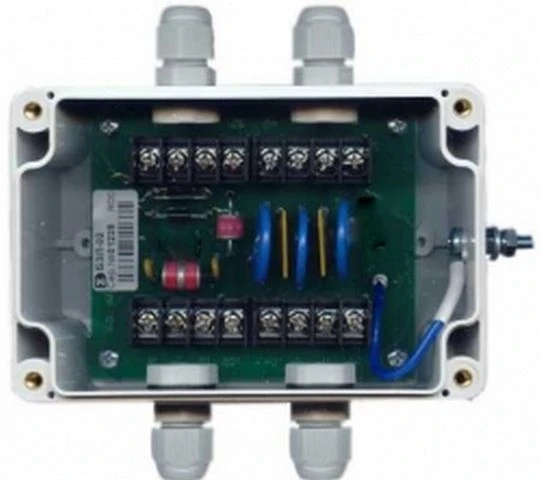

Line protection unit BZL-02 IP65

Fire Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used for protection of communication lines, signalling loops, circuits of secondary power supply sources from overvoltages arising due to atmospheric effects, switching of equipment, inductions from high-voltage power lines and other sources of high voltage. Lightning protection - 1 communication line: RS485 or 12V loop, 1 power supply line up to 30V.

Specifications

Data transmission speed, max. 19200

Capacitance "communication line (A, B) - signal ground", not more, pf 700 pf

Capacitance "communication line (A, B) - protective earth" not more 30 pts.

Channel resistance, not more 6 ohm

Maximum operating voltage "communication line (A, B) - signal ground" max. 16 V

Maximum current of communication lines (A, V) , not more than 0.3 A

Maximum discharge current "communication line (A, B) - protective earth" (pulse 8/20 ?s) , not more, kA B1/B8 2100/900 MHz

Discharger breakdown voltage (DC voltage), 72...108 V

Voltage of the protected line of the secondary power supply circuit, not more than 30 V

Current of the protected line of the secondary power supply circuit, not more than 5 A

Insertion resistance, not more 0.1 ohm

Operating temperature range -50...50 °C

Degree of enclosure protection IP65

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
