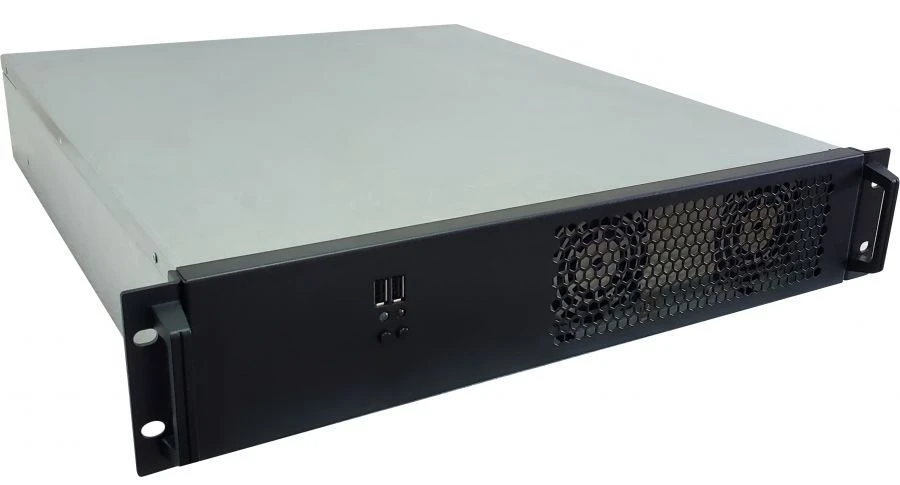

Line NVR64 Video Server FSTEC ST-1 for Advanced Surveillance Systems

Wearable Video Systems

Manufacturer: SMARTCAM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Video server Line NVR64 FSTEK ST-1 is an element of video surveillance systems "Line", which are integrated with various hardware and software complexes. Video server is designed to provide round-the-clock video surveillance in real-time mode, recording of observed events with the possibility of archiving, as well as to analyse video materials and use them if necessary. The server can be used to work with confidential information, including personal data.

It complies with the requirements of the FSTEC of Russia methodological document "Protection Profile for Type A Operating Systems of the Fourth Class" (IT. OS. A4.

PZ). The implementation of an integrated approach is especially in demand at large enterprises, industrial facilities and can provide control over large areas.

Specifications

Protection class

IP20

Power consumption, max.

500 W

Frequency of mains current

SBVVBG

Weight, not more (without HDD for archive)

7.5 kg

Number of video/audio channels

64 video channels; up to 64 audio channels depending on IP camera

Video transmission rate

On 1 channel: up to 25 frames per second, up to 12 Megabits per second

Telemetry control

Control of PTZ IP cameras via Ethernet according to integration level

Motion detector

Check. Object-oriented, multi-zone, multi-layer motion detector. Ability to adjust sensitivity by the percentage of the size of the detection object to the resolution of the camera, with the ability to adjust the duration of motion, pre-recording and on th

Possibility to connect external security sensors

not applicable

Saving current video information

Recording mode: by detection, constant, scheduled. Recording to local HDD or network via SMB protocol.

Resolution of video channels

Main stream is not limited in resolution, provided that the second stream is used not higher than 640x480 pixels

Number of frames per second capture/record on each channel

Software Unlimited

Video codecs

H.264, H.265, MJPEG (when using RTSP)

Pre-installed operating system

Astra Linux SE

Case of a system unit

Housing Line 2U-19''

Overall dimensions, WxWxH, mm

497x428x89

Processor

Intel\AMD: 6 cores (12 threads), base clock speed not lower than 3GHz, third-level cache not lower than 10MB, 64bit support, power consumption up to 150W

System board chipset

Intel\AMD: compatible with the processor in use

RAM

DDR4/DDR5 at least 16GB (dual channel mode)

Disk subsystem

SSD M.2: at least 120 Gb. Possibility to install 4 HDDs (3.5") for archive (HDDs not included)

Graphics subsystem

Video card integrated into the processor. Support at least 2 monitors.

I/O interfaces

1 x HDMI 1 x DisplayPort at least 2 x LAN (RJ45) at least 4 x USB 3.0 at least 2 x USB 2.0

Single-phase mains supply voltage

220...240 V

Operating conditions

Temperature: from +10 to +35°C. Humidity: 10-80 % (without condensation). No dust formation.

Audio codecs

MP3, MP2, MP1, AAC, PCM, G.711, G.723.1, G.726, G.729 and others, more than 160 audio codecs in total.

Network

2 x Gigabit Ethernet

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
