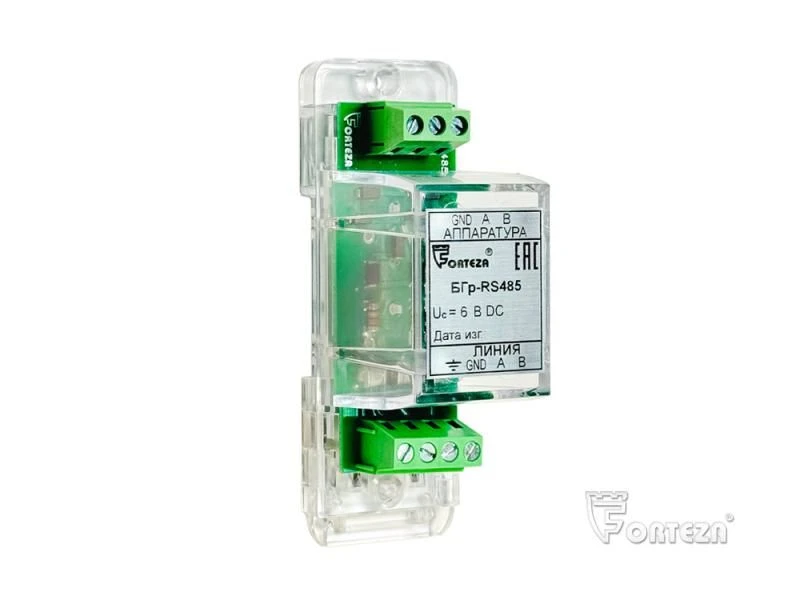

Lightning protection unit "Block BGr-RS-485"

Surge Protection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

They are used for protection of two and three-wire lines of RS-485 interface and the equipment connected to them from impulse overvoltages caused by floods in long lines at lightning discharge.BGr-RS485 is designed for use in DC and AC circuits with voltage amplitude up to 6 V. It provides data transmission speed up to 1000 kbit/s and is made in a plastic case for mounting on a DIN-rail or flat surface.

Specifications

Number of circuits 3 pc

Degree of enclosure protection IP-20

Weight 0.1 kg

Dimensions 96x58x37 mm

Maximum continuous DC operating voltage 6 V

Resistance inserted into the circuit, max. 2.2 ohm

Protection voltage for circuit A-B: 15 V; for circuits A-GND, B-GND Flat grinder, Specialised grinder V

Bandwidth at -3dB level, not less than 20
