Lifting platform for disabled people and other low mobility groups with vertical movement BK A 110

Material Handling Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

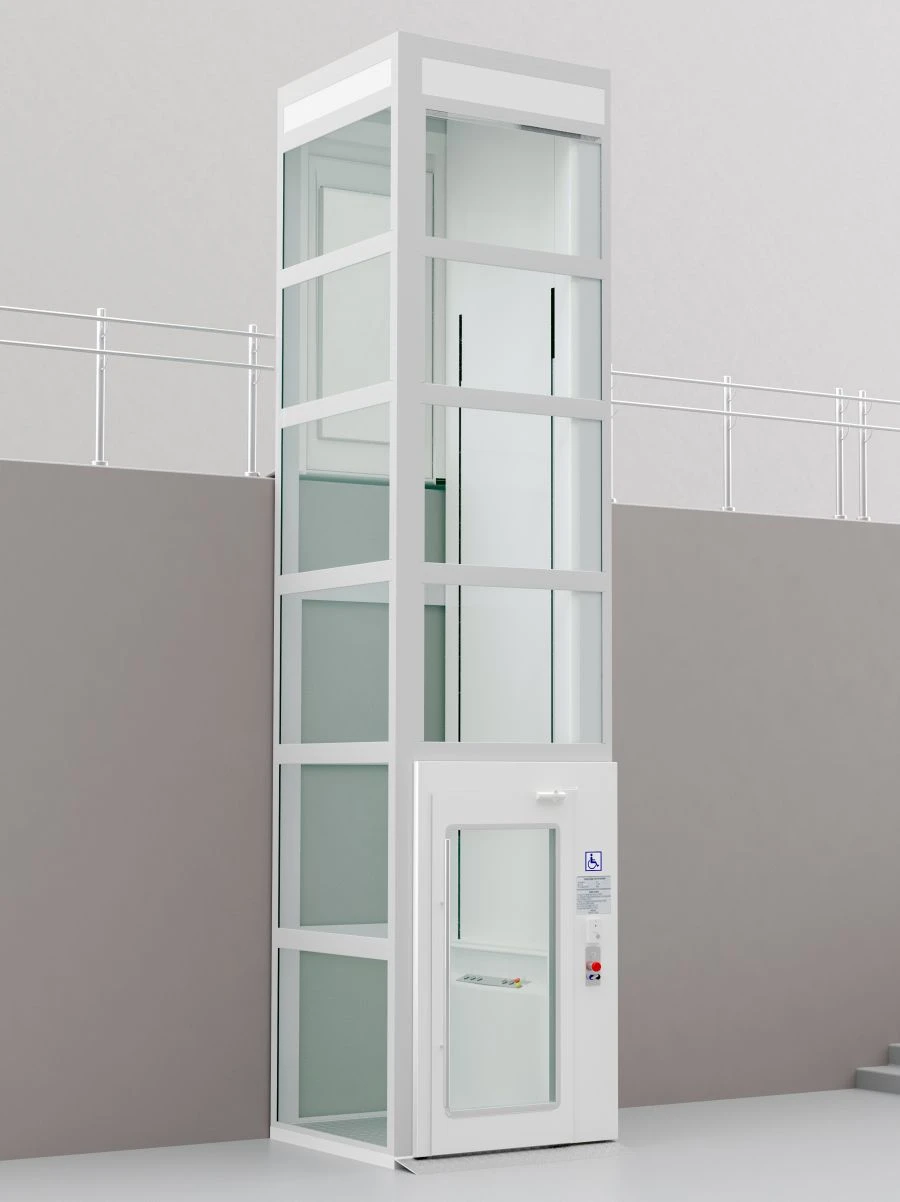

The lifting platform BK A 110 is designed for moving disabled people and other low mobility groups along the vertical trajectory.

Technical Specifications

Assignment	Designed for moving disabled persons and other low mobility groups of population along the vertical trajectory.
Payload	0.385 t
Type	Lift platform for disabled persons and other low mobility groups with vertical movement with a shaft
Drive	electromechanical
Travel speed	0.15
Type of control	Push-button-key system 3191302:Push-button-key system
Maximum number of stops	5 pc
Maximum lifting height	B1/B8 2100/900 MHz m
View of actuator thread	Tr 40x7H
Brake type	Disk
Diameter of brake pulley	80 mm
Motor type	AIR90L4EU3
Motor power	2.2 kW
Door opening size	900x2000 mm
Platform size	1100x1400 mm
Emergency safety nut	Got it
Automatic actuator of emergency descent	Got it
Shaft door closing safety switches	Got it
Shaft door automatic lock safety switches	Got it
Safety switches for the safety nut	Got it
Platform safety edge safety switches	Got it
Safety switches for the retractable stop at the bottom of the shaft	Got it
Stop button on the gantries	Got it
Stop button on the platform	Got it
Stop button at the bottom of the shaft	Got it
Safety factor of the emergency safety nut.	17
Safety factor of the nut	28
Tensile safety factor for screws	33
Designation	Lift platform for disabled persons and other low mobility groups with vertical movement with a shaft

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
