Available for Import

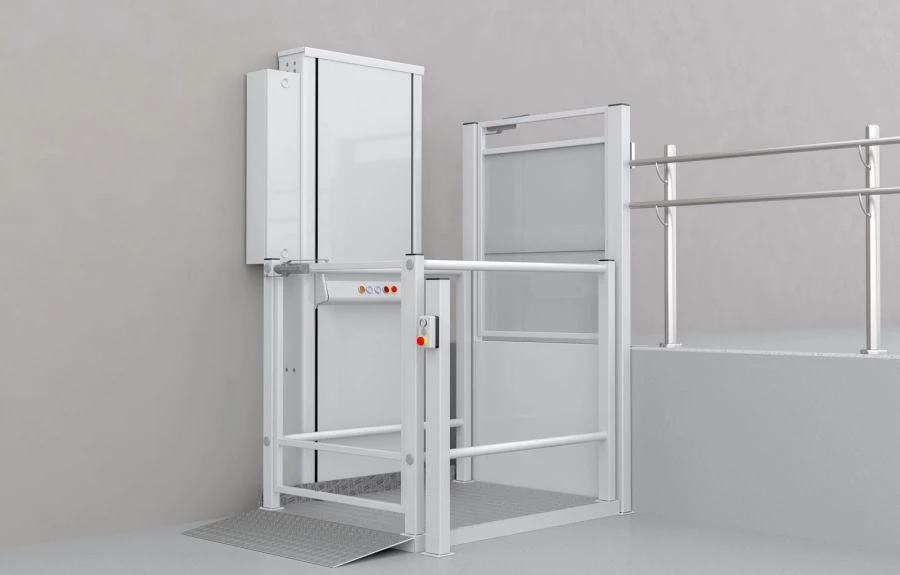

Lifting platform for disabled people and other low mobility groups with vertical movement BK 440

Material Handling Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The lifting platform BK 440 is designed for moving disabled people and other low mobility groups of population along the vertical trajectory.

Technical Specifications

Payload	0.385 t
Assignment	Designed for moving disabled persons and other low mobility groups of population along the vertical trajectory.
Type	Platform for disabled persons and other low mobility groups with vertical movement without a shaft
Drive	Electromechanical screw conveyor
Nominal travel speed	0.045
Type of control	Push-button
Number of stops	2 pc
Maximum lifting height	3000 mm
View of screw threads	Tr 30x6
Motor type	AIR80V4E2U2
Motor power	1.5 kW
Brake type	?80
Platform size	980 x 1250;1100 x 1400 mm
Emergency nut	Available
Safety panel under the platform	Available
Maintenance stop (retractable)	Available
Platform travel stop (overrun)	Available
Control of the closed position of the upper landing stage door	Available
Control of the closed position of the door of the steering unit	Available
Wear monitoring of travelling nut	Available
Control of manual release of main motion drive (engine).	Available
Control of the manual lowering hand wheel of the throttle control centre.	Available
Maintenance stop monitoring	Available
Control of PCB top cover	Available
Control of electroautomatics cabinet cover	Available
Button "STOP" on GU	Available
STOP button on landing pads	Available
Running nut loading control device	Available
Platform safety surface	Available
Tensile safety factor for screws	10
Designation	Platform for disabled persons and other low mobility groups with vertical movement without a shaft
Dimension of door opening in light	910 mm
Safety factor of the bending stability screw.	4.2

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
