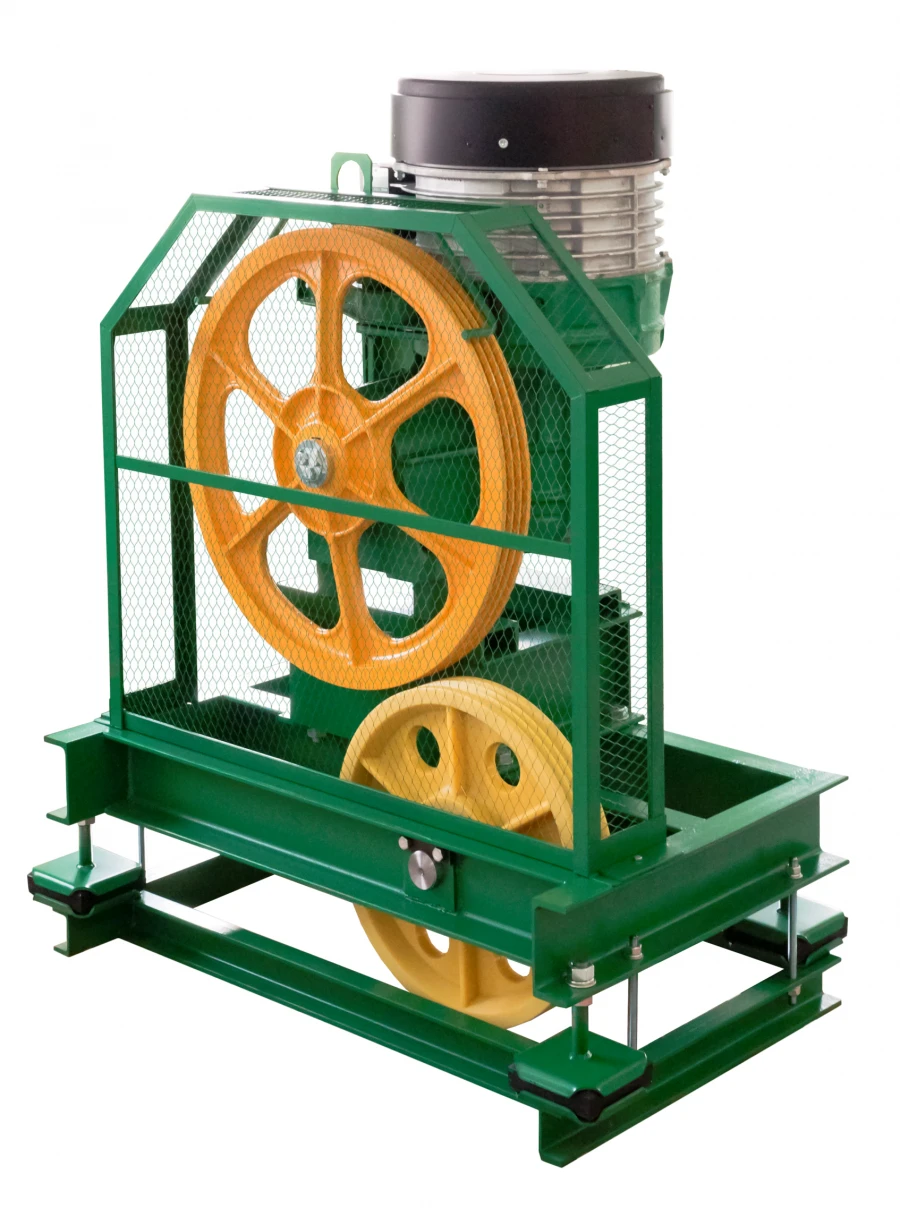

Lift winch SGR10

Elevator Component Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Lift winch SGR11

Lift winch SGR10 is designed to drive a lift with a capacity of 400 kg and speed of 0.71 m/s, installed in residential, public and industrial buildings.
The winch has a built-in worm gearbox, can be made both in two-speed and single-speed version working in a set with electronic frequency converter.
Type of climatic execution of the motor - UHL according to GOST 15150. According to the category of placement the winch is made for category 4.
Means of protection against corrosion of the winch parts provide safety during the service life and meet the requirements of GOST 9.301 and GOST 9.303..

Technical Specifications

Payload	400 kg
Speed of elevator car movement	0.71
Gearbox ratio	69
Transmission center distance	138.6 mm
Suspension	1:1
Braking torque	80
Diameter of brake pulley	328 mm
Diameter of rope sheave	620 mm
Number and diameter of CPS ropes	3x10
Load on the axle of the CBC	18500
Motor type	asynchronous
Synchronous speed	1500
Rated current	10 A
Rated power	3.7 kW
EFFICIENCY	72 %
Number of switching operations per hour	150
Winch weight	360 kg
Rated torque on output shaft	1300

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
