Level Sensors-Relays ROS 101 (ROS 102) for Liquid and Solid Control

Available for Import

Level Sensors-Relays ROS 101 (ROS 102) for Effective Liquid and Solid Monitoring

Level Measurement Instruments

Manufacturer: MORINSIS-AGAT-KIP OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

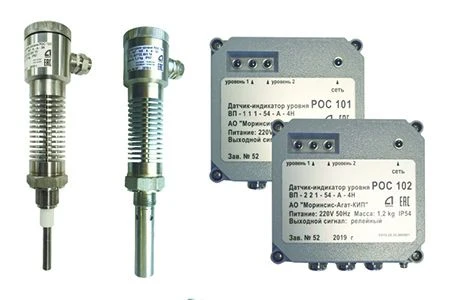

The level sensors ROS 101 (ROS 102) are designed to control the level of electrically conductive and non-electrically conductive liquids, solid (bulk) media, as well as the interface of media (water - light oil products, liquefied hydrocarbon gases - water) and other liquids with sharply different dielectric permeability. Level sensors ROS 101 (ROS 102) meet the requirements of the Rules of the Russian Maritime Register of Shipping and the Russian River Register. Level sensors ROS 101 (ROS 102) refer to capacitive devices. Types of sensor sensitive element construction:

- rod (with and without insulation);
cylindrical (with and without insulation);
cable;

Type of explosion protection:

- primary transducers "0 Ex ia IIC T6";
secondary converters [Ex ia] IIC;

Degree of enclosure protection:

- primary transmitters: IP67;
secondary converters: IP54, IP67

Specifications

Power supply voltage

24 V

Service life

B1/B8 2100/900 MHz year

Degree of protection of the outer shell

54;67

Deviation of actuation level from nominal value

5 mm

Length of the immersed part of the sensing element

0.1-4 (rod PE design); up to 0.6 (cylindrical PE design); up to 22 (cable PE design) m

Operating temperature range of the controlled medium

-100...250 °C

Operating pressure of the controlled medium

Not more than 6.3 MPa

Ambient operating temperature range

-50...70 °C

Power supply parameters

24 (DC voltage); 220 (AC voltage at 50; 60; 400 Hz) V

Power consumed by the primary converter

0,7 W

Power consumed by the secondary converter

5 W

Communication line length

Up to 300 (for explosion-proof version); up to 1000 (for non-explosion-proof version) m

Assigned service life

B1/B8 2100/900 MHz year

Model

ROOS 101 (ROOS 102)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
