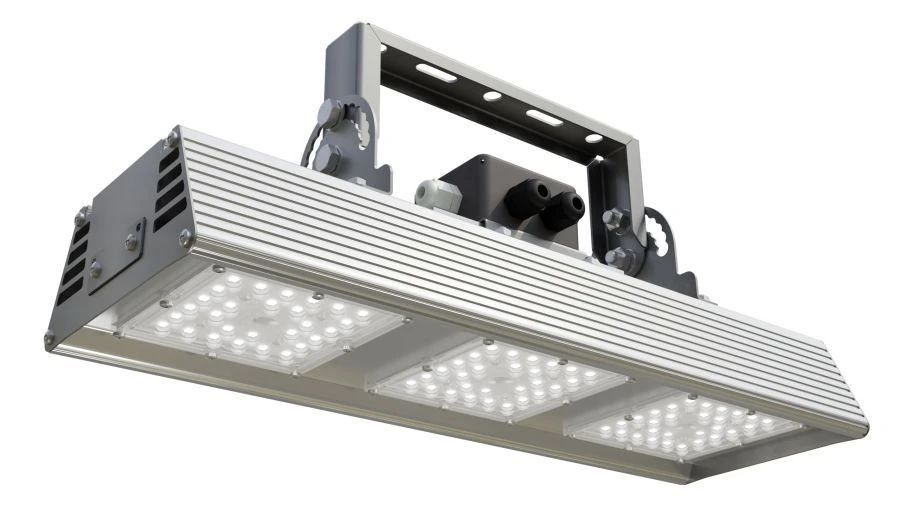

LEDMASTER LED Light TSR4-90-H-F90-5000K for Efficient Lighting Solutions

LED Lighting Fixtures

Manufacturer: LEDMASTER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Luminaire consisting of one LED module, one power supply, mounting elements, wiring and junction box for connection to the network. Designed to work in AC networks with a nominal voltage of 220V and frequency of 50 Hz. The luminous flux of the luminaire is controlled by 1-10V protocol and soft start.Wall luminaire with adjustable angle of inclination is designed for illumination of open areas of railway infrastructure facilities (passenger platforms, station area, passages, service passages, etc.)

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Luminous flux at dimming mode 100%,Lm

14944 lm

Power consumption in dimming mode 100%, W

88 W

Light output at dimming mode 100%, Lm/W

169

Correlating color temperature at 100% dimming mode (CCT),K

4853 K

Color rendering index at dimming mode 100%(CRI)

Ripple factor in dimming mode 100%

1 %

Power factor

0.98

Light intensity curve (LIC)

D - deep

Degree of protection (IP)

Highest ambient temperature

40 °C

Lowest ambient temperature

-60 °C

Protection class against electric current

Rated supply voltage, V

220 V

Operating voltage range, V

176...264 V

Operating frequency range, Hz

50...60

Housing material

Anodized aluminum

Mounting type

Wall mounted adjustable

Length, mm

429.1 mm

Width, mm

145.5 mm

Height, mm

185.7 mm

Net weight , kg

3.45 kg

Climatic version

UHL1

Warranty period of operation

5 years

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
