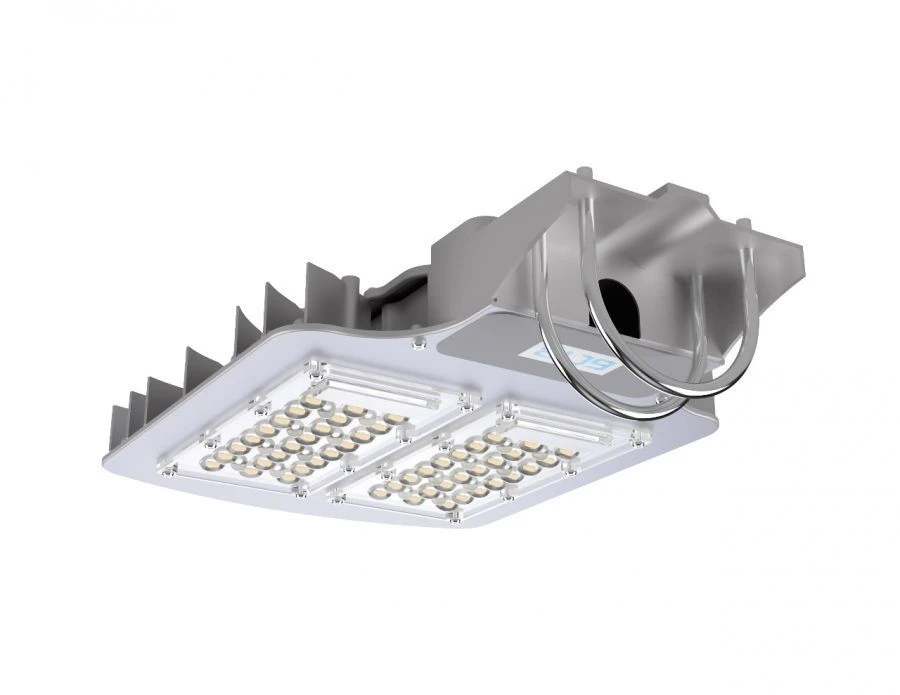

LED street luminaire BSTZ Magistral DKU 009-100
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
LED street LED luminaire BSTZ Magistral DKU 009-100. It is intended for illumination of adjacent territories, open areas, road junctions, industrial areas, motorways and pedestrian crossings. Its main function is to create an artificial light flux that meets regulatory requirements and provides the necessary level of safety on highways and pedestrian areas at night.The body is made of die-cast aluminium alloy. Secondary optics-group lens 173071(3x8)-2pcs.
Specifications
Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Temperature mode
-50...50 °C
Overall dimensions, DxWxH
372x200x74 mm
Color temperature
2700...5000 K
Height
74 mm
Type by installation location
Outdoor, cantilever
Climatic version
UHL1
Pulsation factor
1 %
Luminous flux, lm
13650 lm
Upper operating temperature value
SBVVBG °C
Power consumption
100 W
Housing material
Aluminum alloy
Width
200 mm
Length
372 mm
Color rendering index (Ra)
80...90
Gross weight
3 kg
Net weight
2.8 kg
Lower operating temperature value
-50 °C
Climatic version
UHL1
Correlating color temperature (CCT)
2700...5000 K
IK code
9
Power factor
0.98
Power consumption, W
100 W
Rated supply voltage
167...264 V
Type of supply current
permanent
Housing material
Aluminium alloy, die casting
Type by installation location
Outdoor, cantilever
Overall dimensions, DxWxH
300x200x70 mm
Climatic version
UHL1
Pulsation factor
1 %
Luminous flux, lm
13600 lm
Housing material
Anodized aluminum
Color rendering index (Ra)
80...90
Protection class against electric current.
1
Gross weight
3 kg
Net weight
2.8 kg
Lower operating temperature value
-50 °C
Correlating color temperature (CCT)
3000...5000 K
IK code
9
Power factor
0.98
Power consumption, W
100 W
Type of supply current
permanent
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
