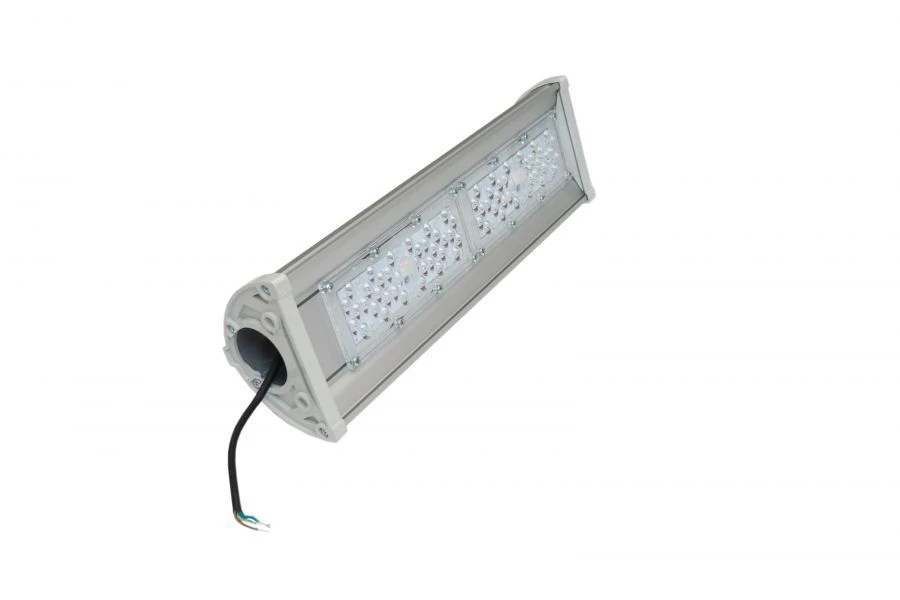

LED Street Light SSU 500 for Effective Outdoor and Indoor Illumination

LED Lighting Fixtures

Manufacturer: BLOCK OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for lighting highways, streets, adjacent/industrial/commercial/manufacturing areas, as well as for internal lighting of industrial/warehouse premises. Installation: console, suspension, swivel bracket. Body - anodised aluminium. Optical part - lens. Advantages: low weight and overall dimensions, high degree of light output/energy efficiency, versatility, resistance to aggressive environments.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

IK code

Power factor

0.97

Power consumption, W

70...120 W

Rated supply voltage

176...264 V

Type of supply current

Variable

Width

120 mm

Degree of protection IP

Height

85 mm

Length

512...612 mm

Length.

512...612 mm

Width.

120 mm

Height.

85 mm

Power.

70...120 W

Climatic version

UHL1

Housing material

Anodized aluminum

Power consumption

70...120 W

Type by installation location

Cantilever, pendant, swivel bracket

Correlated color temperature

5000 K

Overall dimensions, DxWxH

512(612)?120?85 mm

Lower operating temperature value

-40 °C

Upper operating temperature value

40 °C

Luminous flux, lm

11200...18500 lm

Power

70...120 W

Input voltage

176...264 V

Degree of protection (IP)

Power supply voltage

176...264 V

Color temperature

5000 K

Pulsation factor

1 %

Housing material

Aluminum

ELECTRICAL PROTECTION CLASS. CURRENT PROTECTION CLASS (NUMERIC VALUE!!!!!!!)

Color rendering index (Ra)

Protection class against electric current.

Gross weight

2.2...3.2 kg

Net weight

2...3 kg

Protection class against electric current

Correlating color temperature (CCT)

5000 K

Option

Диммируемый драйвер

Type by installation location

Cantilever, suspended, swivelling

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
