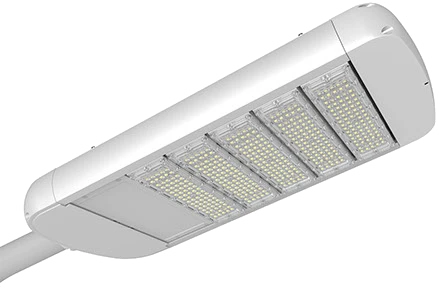

LED Street Light for Road Lighting BL-LD-3C-5(XPL)

Available for Import

LED Street Light for Road and Outdoor Lighting - BL-LD-3C-5(XPL)

LED Lighting Fixtures

Manufacturer: ASTRA-CENTER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

LED luminaire series BL-LD-3C(XPL) is designed for lighting of highways categories A,B,C (according to SP 52.13330.2016), city streets, as well as for external lighting of enterprises and shopping centres. The modern design of the luminaire was developed taking into account all requirements for protection against dirt and wind load. The housing is made of sheet aluminium by stamping method and coated with heat dissipating powder paint.

The driver is equipped with a block of protection against voltage fluctuations in the power supply network (threshold of 320-380 VAC). At the moment of connection, the driver circuitry ensures minimum inrush currents. Short-circuit protection.

Smooth power reduction when heating above 80°C. Ultra-efficient LEDs brand OSRAM Opto Semiconductors.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current

AC/DC

Degree of protection (IP)

IP67

Upper operating temperature value

plus 50 °C

Lower operating temperature value

minus 60 °C

Color temperature

2700...6500 K

Power factor, greater than or equal to

0.9

Color rendering index (Ra), greater than or equal to

Supply voltage value

176...264 V

Mounting type

Console

Luminous flux

32400...39600 lm

Power consumption

180...220 W

Maximum length

829 mm

Maximum width

380 mm

Maximum height

125 mm

Maximum weight

9.8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
