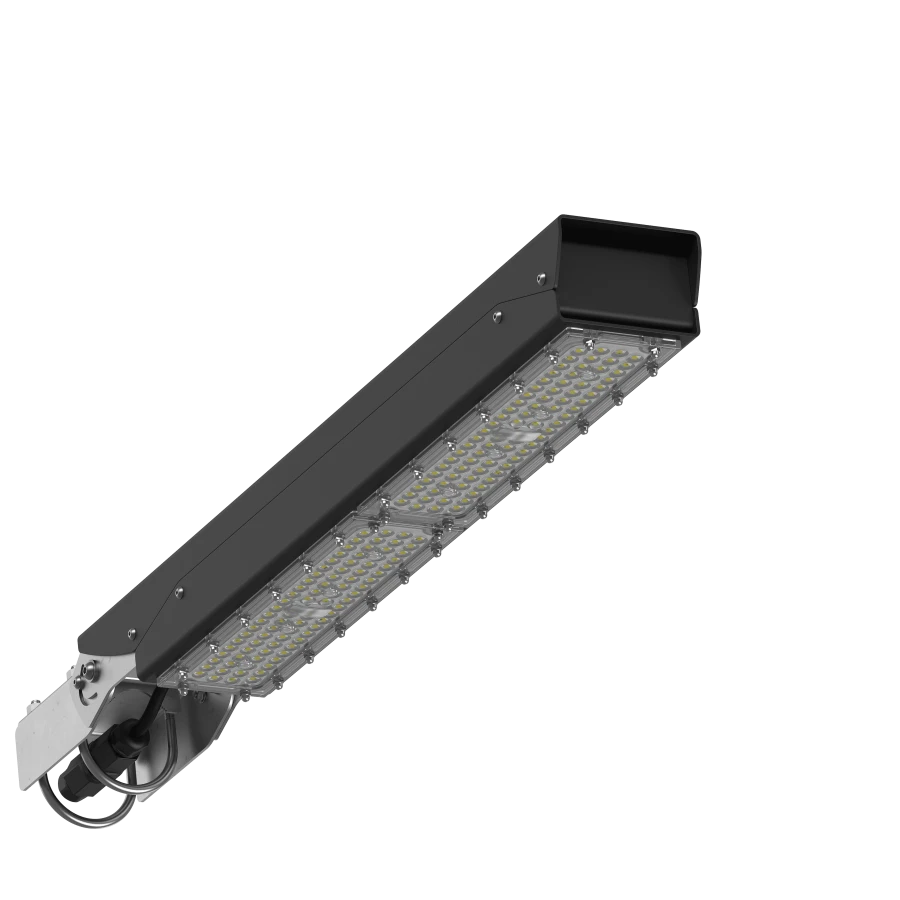

LED street lamp Maximus Standard MSFT-ST41-284

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Maximus Standard series luminaires are designed for outdoor lighting of urban objects: streets, roads, parks, playgrounds, playgrounds, adjacent territories. The lightweight ribless body of the luminaire is made of aluminium, in which a robust stainless steel bracket is integrated. The luminaire can be equipped with several types of brackets: cantilever brackets with extended tilt angle adjustment from +30 to -90 degrees for mounting on a pipe with diameter from 34 to 65 mm, and wall bracket with tilt adjustment from +30 to 0 degrees. As a light source is used LED module complete with secondary optics. The luminaire includes the possibility of adjusting the power consumption and luminous flux in the claimed range, the choice of the angle of radiation and the type of CWS, the execution of the correlated colour temperature and colour rendering index.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Temperature mode -60...90 °C

Additional devices NEMA, Zhaga connector for connection of the control device is provided

Warranty 5...7 a

Weight 3.7...3.9 kg

Height 70...110 mm

Width 88 mm

Length 622...700 mm

Degree of protection IP67

Console seat diameter 34...65 mm

Adjusting the cantilever arm 30...-90

Adjusting the wall bracket 30...0

Number of bracket types 3 pc

Network frequency 47...63

Power supply voltage 170...290 V

Luminous flux ripple factor 1 %

Color rendering index 70...89

Correlated color temperature 2700...6500 K

Light efficiency 122...147

Luminous flux 12550...22700 lm

Power consumption 99...165 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
