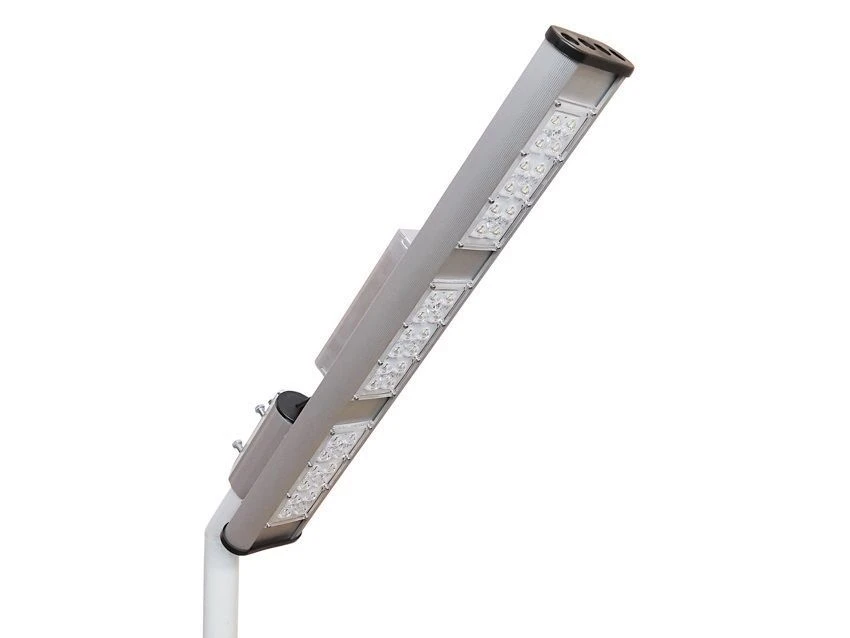

LED street lamp ELEDA 130 art. ??-?-??1-130W-L

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED outdoor luminaire ELEDA 150 art. ??-?-??1-150W-L LED outdoor luminaire ELEDA 160 art. ??-?-??1-160W-L LED street lamp ELEDA 140 art. ??-?-??1-140W-L

Description

LED street light ELEDA 130W is used for illumination of streets and roads of category A, B, C. The luminaire is equipped with a special main secondary optics (lens), providing a wide light intensity curve ("W"). The use of this lens allows to provide uniform illumination of the roadway. The body of the luminaire is made of anodized extruded aluminium, which gives durability, reliability, corrosion resistance and perfect heat dissipation from LEDs, which ensures the longevity of operation of the main LED luminaire. The luminaire is equipped with a high degree of protection against dust and moisture (IP67), a good range of permissible ambient temperatures from -60°C to +45°C, has a cantilever type of mounting and can be mounted on a pipe with a diameter of up to 52mm. The working height of the luminaire mounting is 6-12 metres.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Pulsation factor 1...2 %

Upper operating temperature value 45 °C

Color rendering index (Ra) 70...80

Gross weight 4...4.3 kg

Net weight 3.7...4 kg

Lower operating temperature value 45 °C

Protection class against electric current 1

Power factor 0.97

Type of supply current AC, 50-60Hz

Height 121...130 mm

Power consumption 126...135 W

Type by installation location Street

Luminous flux, lm 17640...21600 lm

Power supply voltage 176...264 V

Length 700...800 mm

Degree of protection (IP) 67

Width 120...130 mm

Correlated color temperature 2700...6500 K

Climatic version UHL1

Operating temperature -60 to + 45C

Protection class IP67
