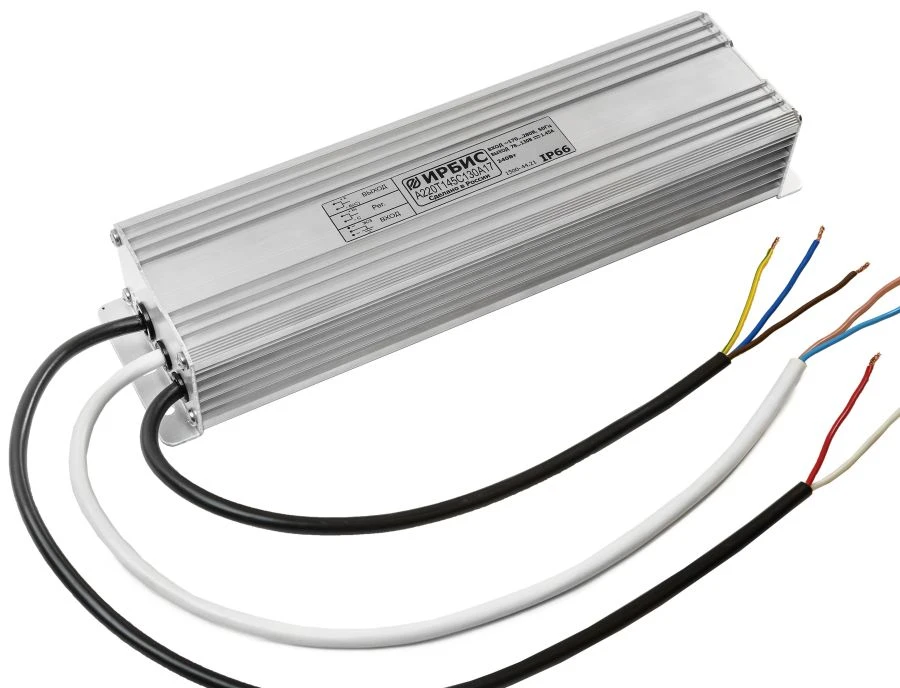

LED Power Supply Source A220T550C042A17 for 238W Load Available for Import

LED Power Supply Source A220T550C042A17 for Stable Current Applications

AC-DC Power Converters
Manufacturer: MMP-IRBIS LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Current sources for LEDs A220T105C130A17 Current sources for LEDs A220T175C130A17 Current sources for LEDs A220T070C300A17 Current sources for LEDs A220T070C330A17 Current sources for LEDs A220T082C295A17

Description

Purpose: designed to supply LED load up to 238W with stabilised current. Power supplies provide low output voltage ripple and are intended for use in lighting installations for rooms with computers and other premises with high requirements to the coefficient of illumination ripple. They are used in LED luminaires for office lighting, housing and utilities. IP66

Specifications

Power
230 W
Input voltage
90...305 V
Output current
0.55...5.5 A
Overall dimensions
274x71x46 mm
Operating temperature range
-40...60 °C
Possibility to dim the output current
Protocol 1...10V; PWM; Resistor
Output voltage range
21...42 V
Galvanic discharge
Armoured glass
Power factor corrector
Armoured glass
Dustproof
IP66
