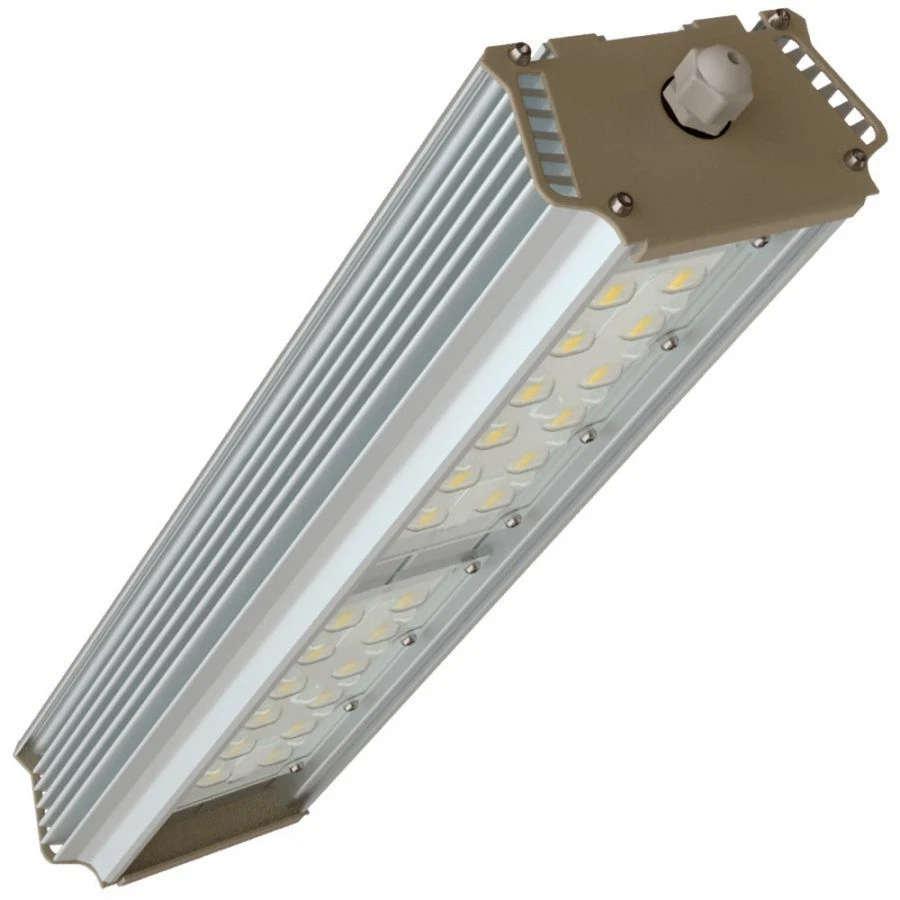

LED outdoor luminaire BSTZ Pobeda DKU 007-100 DIM PLC

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED outdoor luminaire BSTZ Pobeda DKU 007-100

Description

LED street LED luminaire BSTZ Pobeda DKU 007-100 DIM PLC with built-in connector for PLC-module control, designed for lighting adjacent areas, open areas, industrial areas, highways and autorods of all types. The housing is made of anodised aluminium alloy. GSLED 5050 LEDs are used as a light source. Secondary optics - group lens 173071 (3x8)-3pcs, is under the protective fused glass. The uniqueness of this product in its additional possibilities of application in ASUNO (Automated System of Outdoor Lighting Control) with the function of pololampovogo addressable control of lighting devices and control via ARMD.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Temperature mode -50...50 °C

IK code 9

Power factor 0.98

Power consumption, W 100 W

Rated supply voltage 167...264 V

Type of supply current permanent

Rated supply voltage 167...264 V

Type of supply current permanent

Color temperature 3000...5000 K

Type by installation location Outdoor, cantilever

Climatic version UHL1

Pulsation factor 1 %

Luminous flux, lm 13650 lm

Upper operating temperature value SBVVBG °C

Power consumption 100 W

Housing material Anodized aluminum

Height 190 mm

Width 122 mm

Length 550 mm

Color rendering index (Ra) 80...90

Gross weight 3.8 kg

Net weight 3.6 kg

Lower operating temperature value -50 °C

Correlating color temperature (CCT) 3000...5000 K

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
