Available for Import

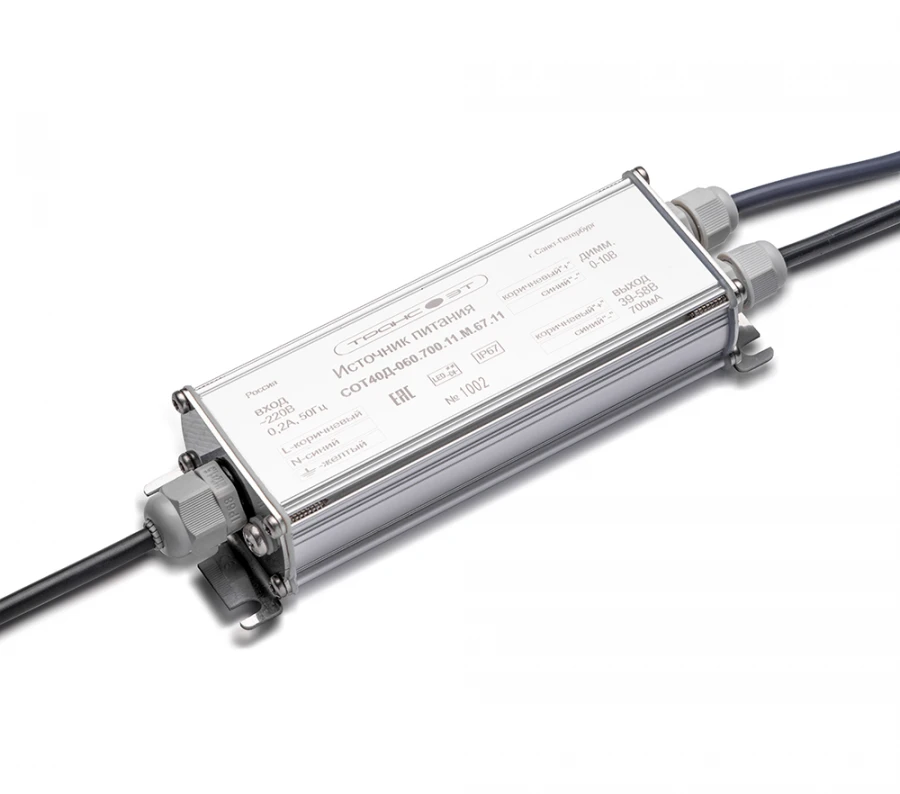

LED Matrix Power Supply Source SOT40D-060.700.11.M.67 for Stable Current Supply
Manufacturer:
TRANSET LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for supplying stabilised current to LED matrixes
Specifications
Protection against output voltage overshoot
Got it
Dimming support
Got it
Dimming protocol
0...10 V
Weight, max.
0.203 kg
Dimensions of the source (DxWxH) mm
180 x 46,4 x 32
Degree of protection of the shell
IP 67
EMC 9 kHz - 30 MHz
Conforms to ?? ?? 020/2011 "Electromagnetic compatibility of technical means"
Warranty
5 years
Country of manufacture
Russia
AC input voltage operating range
Weff 176-264.
AC input voltage limit range
90...270 V
Maximum allowable AC input voltage
Weff 400.
Input voltage frequency
50±4%
Power factor, not less than
0.95
Current consumption
0.2 A
efficiency, at least
89 %
Output current
mA 700±5%
Temperature deviation of output current value in the operating temperature range, not more than
2 %
Operating range of output voltage
39...58 V
Maximum load power
39.2 W
Galvanic isolation input - output
Got it
Electrical insulation strength (input-output), effective value
Weff 1500.
Provides light ripple factor, not more than
1 %
Protection when AC input voltage 380 Veff is applied
Got it
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
