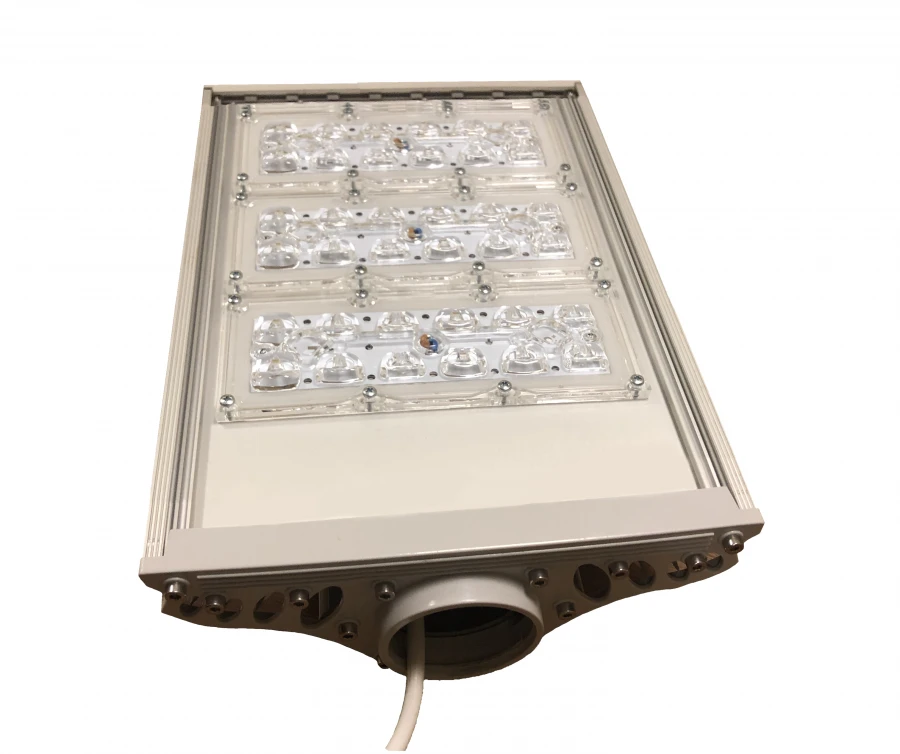

LED luminaires series EG-DKU-04

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

LED cantilever street LED luminaires for illumination of highways and car parks, the body is made of anodized aluminium, end caps are plastic, the optical part is made of light-stabilized polycarbonate, operating voltage: 176-264V, frequency: 50 Hz, power consumption: 84, 112, 140 W, luminous flux: 10920, 14820, 18200 Lm, possible CCC types: K, G, D, W, colour temperature: 2700-5300K, colour rendering index: Ra>70, power factor: PF>0.95, ripple factor: less than 1%, protection class against electric shock: I, galvanic isolation, short-circuit and voltage drop protection, optional lightning protection, EMC compliant, degree of protection against environmental influences: IP65, climatic design: U1, the material of the LED module - foil aluminium with a thickness of at least 1.5 mm and thermal conductivity of at least 2 W/m *K, service life: 100 thousand hours.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Type by installation location Cantilever

Power consumption 140 W

Power factor 0.95

Protection class against electric current I

Pulsation factor 1 %

Climatic version ?1

Degree of protection (IP) 65

Color rendering index (Ra) 70...90

Climatic version ?1

Correlated color temperature 2700...5300 K

Power supply voltage 176...264 V

Upper operating temperature value 40 °C

Luminous flux, lm 18200 lm

Housing material ????????;???????

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
