Available for Import

LED luminaire RAY 20.C

Architectural LED Lights

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

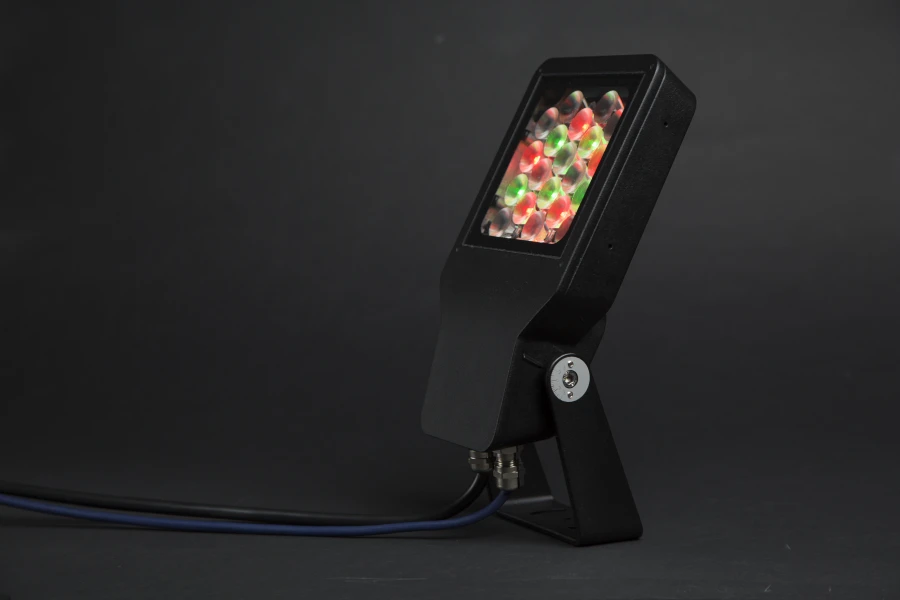

The RAY luminaire is designed for flood and accent architectural lighting. Thoughtful design, reliable components and excellent lighting characteristics have made RAY an indispensable tool in the work of the lighting designer.
RAY features:
-Hexagonal LED placement in the RGBW version provides optimal colour mixing for pure, saturated hues
-High-performance optics with precisely tailored effects for specific purposes. No glare, gives the right effect
-Hardened shatterproof glass. Protects components from external influences and maintains transmittance.
-Management on a new level. The RDM protocol allows monitoring of the status of devices and the lighting system.
-Special layout of the fixture ensures low heating temperature of the housing and extends the life of components and increases the reliability of the luminaire.
-Scale with angle of rotation simplifies installation -Bracket as an integral part of the luminaire

Technical Specifications

Radiation color	Red; Green; Blue; Amber; RGBA; RGBW; RGB
Double angle half brightness	7, 10, 30, 65, 85, 125, 9a10, 10a30, 10x50, 35x105
Rated supply voltage	"230 AC; 24 DC; 48 DC" V
Power factor	0.9-0.95
Pulsation factor	5 %
Type of control	None; DMX; RDM; PWM; DALI
Lower operating temperature value	-40 °C
Upper operating temperature value	45 °C
Type by installation location (mounting type)	Wall/ceiling mounted
Protection class against electric current	First/third
Climatic execution (according to GOST 15150-69)	?1
Housing material	Aluminum alloy
Optical element material	PMMA lenses
Type of diffuser	Silicate tempered glass
Weight	2 kg
Length	140 mm
Width	280 mm
Height	55 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
