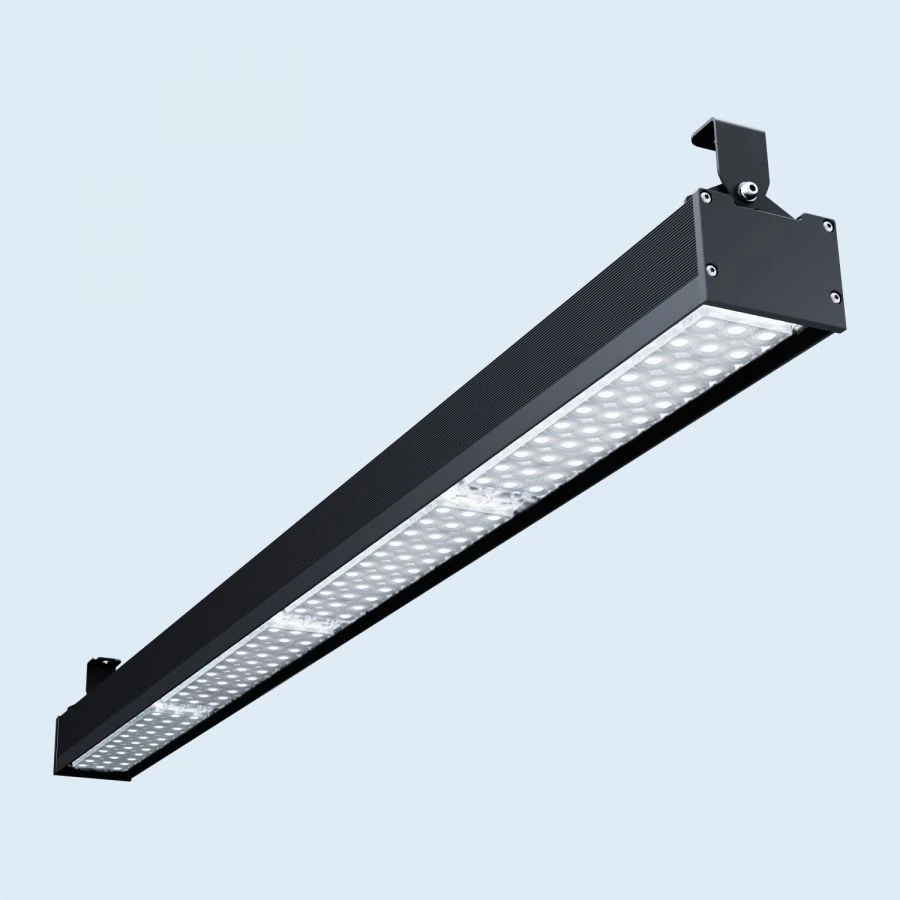

LED luminaire LV-RIFF x4

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for use outdoors and in humid areas. Despite the industrial purpose, the device has a sleek design. The housing has IP67 protection against dust and moisture. The recommended installation height is up to 5 metres, however, if necessary, it can be installed on higher ceilings. Thanks to the secondary optics, the luminaire does not glare in rooms with low ceilings. Additional grilles on the lens hide the LEDs from view. Recommended for use in rooms without natural light.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than 70

Light output, lm/W, not less than 125

Degree of protection (IP) IP67

Type by installation location outdoor, stationary, on bracket/suspension

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 13250...22400 lm

Upper operating temperature value 45 °C

Power consumption 106...160 W

Housing material polymer-coated aluminum

Height 82 mm

Width 91 mm

Length 1301 mm

Net weight 4.3 kg

Lower operating temperature value -40 °C

Protection class against electric current I

Correlating color temperature (CCT) 2700...6500 K

Power factor 0.9

Rated supply voltage 230 V

Type of supply current Variable

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circular

Type of light intensity curve in characteristic meridional planes Q/G/D/L

Light distribution class ?

Mains frequency SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
