LED luminaire LV-INTEGRA x12

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

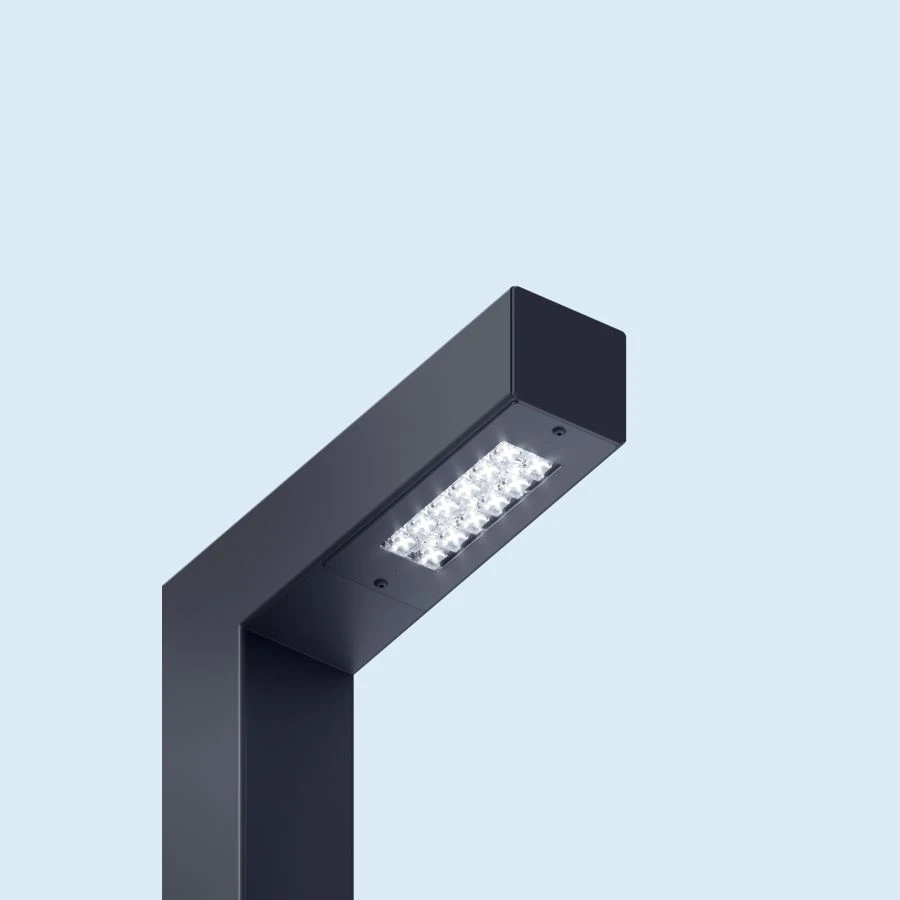

G-shaped luminaire, integrated into the support, designed to illuminate courtyards and public spaces. It has a minimalist design, which allows landscaping projects to look modern and original.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Color rendering index (CRI), not less than 80

Light output, lm/W, not less than 115

Degree of protection (IP) IP66

Type by installation location fixed, outdoor, flange mounted

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 3220...3500 lm

Upper operating temperature value 45 °C

Power consumption 28 W

Housing material polymer-coated steel

Height 3500...5000 mm

Width 250 mm

Length 431 mm

Net weight 70 kg

Lower operating temperature value -40 °C

Protection class against electric current I

Correlating color temperature (CCT) 2700...6500 K

Power factor 0.95

Rated supply voltage 230 V

Type of supply current Variable

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circularly symmetrical/axial/lateral/asymmetrical

Type of light intensity curve in characteristic meridional planes L/S.

Light distribution class ?

Mains frequency SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
