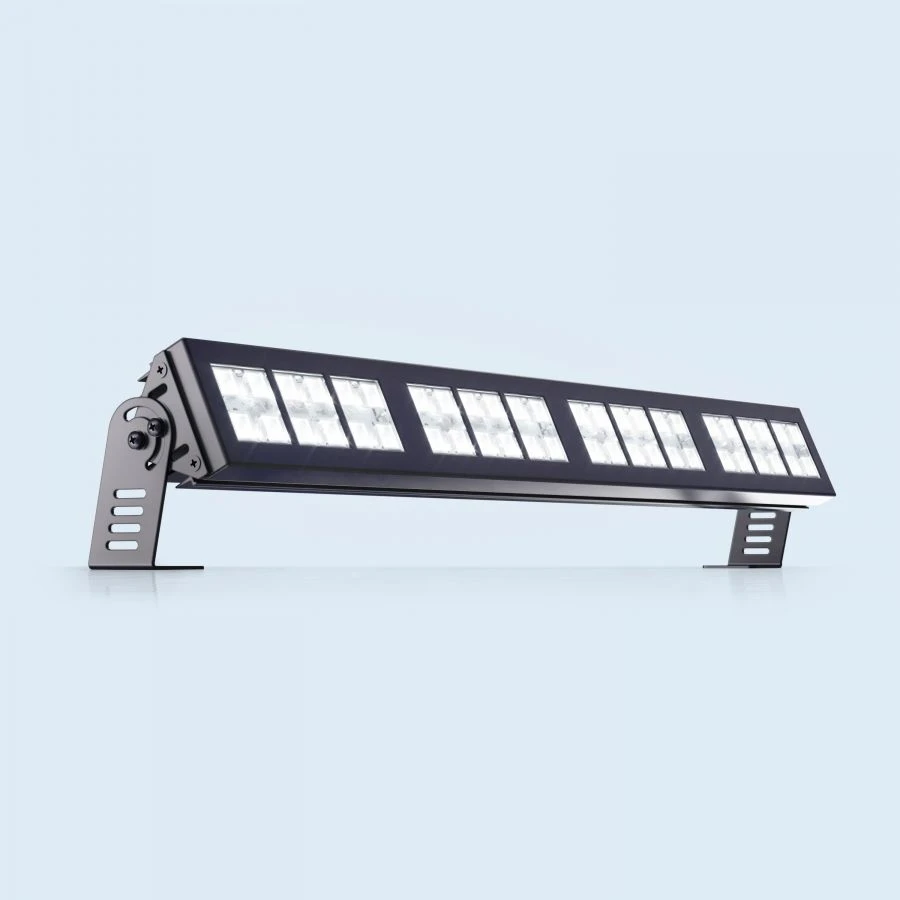

LED luminaire LV-HARD x48

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for 12 and 24 volt mains operation. Optimised for mobile technology and stationary applications: on sites without fixed power grids, in rooms with specific operating conditions (e.g. high humidity), in emergency lighting systems. Optionally for the luminaire is available installation of a non-standard grille, which increases the protection of the luminaire from mechanical damage.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Light output, lm/W, not less than 125

Degree of protection (IP) IP67

Type by installation location stationary, outdoor, on a bracket

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 12600...13800 lm

Upper operating temperature value 45 °C

Power consumption 120 W

Housing material aluminum, polymer coated steel

Height 56 mm

Width 74 mm

Length 699 mm

Net weight 4 kg

Lower operating temperature value -40 °C

Protection class against electric current III

Correlating color temperature (CCT) 2700...6500 K

Power factor 0.92

Rated supply voltage 10...30 V

Type of supply current permanent

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circular/axial

Type of light intensity curve in characteristic meridional planes K/Y/D/L/M

Color rendering index (CRI), not less than 70

Light distribution class ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
