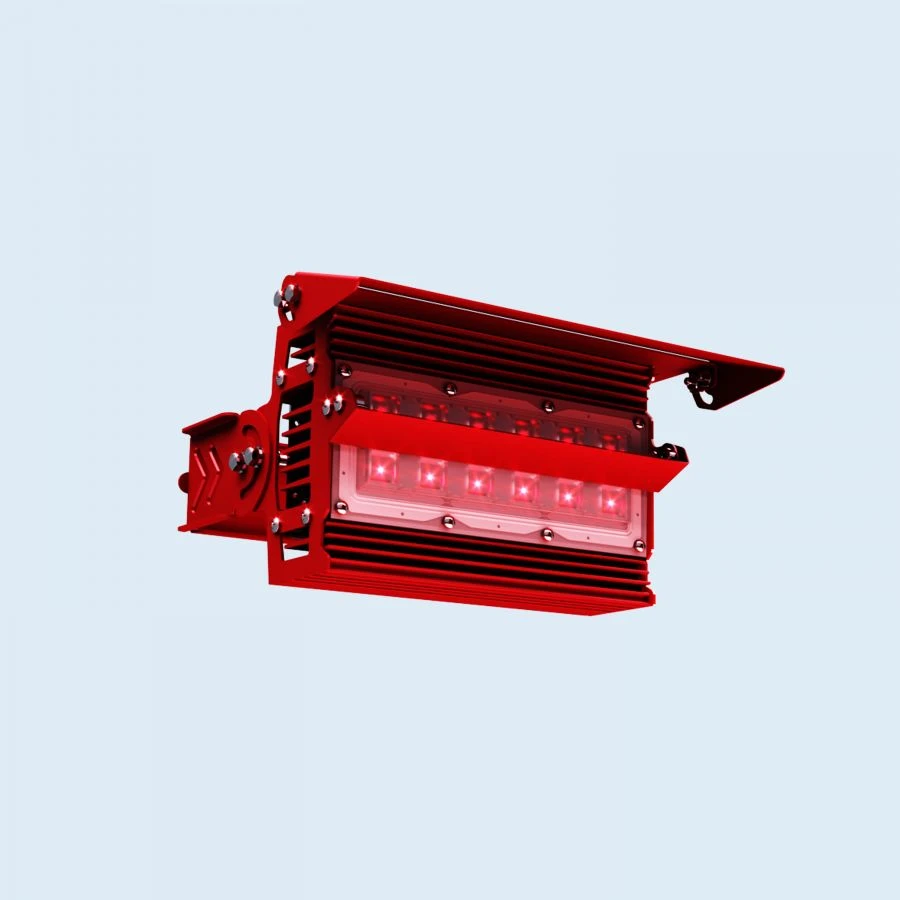

LED luminaire LV-HARD RED x12

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED luminaire LV-PRO RED x12

Description

Applicable as special lighting for work in the mining industry. Lights with red diodes are installed on the side of the excavator and the glow indicates the most dangerous areas. These areas are more likely to cause accidents. Highlighting hazardous areas with red light helps to reduce the number of accidents and make the work safer in general.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Degree of protection (IP) IP67

Type by installation location stationary, outdoor, on a bracket

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 900 lm

Upper operating temperature value 45 °C

Power consumption 22 W

Housing material aluminum, polymer coated steel

Height 91 mm

Width 74 mm

Length 213 mm

Light output, lm/W, not less than 43

Lower operating temperature value -40 °C

Protection class against electric current III

Power factor 0.92

Rated supply voltage 10...30 V

Type of supply current permanent

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circular/axial

Type of light intensity curve in characteristic meridional planes K/Y/D/L/M

Light distribution class ?

Net weight 1.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
