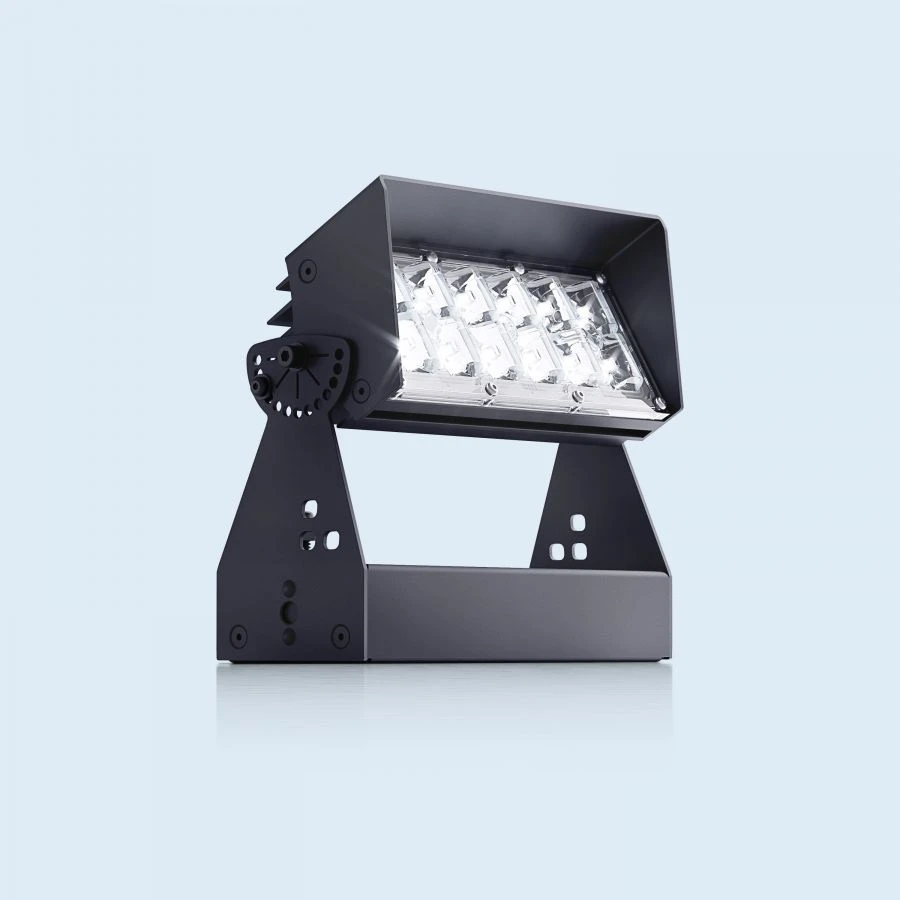

LED luminaire LV-FLOW TYPE-A1x12

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

It is a directional light fixture and provides architectural illumination of building facades, columns, niches, external walls. The sliding light makes the texture of the illuminated surface contrast. Metal shutter cuts off excess light going towards the street. Can solve the problem of local illumination of porches or carriageways: for example, to illuminate the area in front of the entrance to the underground car park.

Technical Specifications

Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Degree of protection (IP)	IP67
Type by installation location	fixed, outdoor, surface mounted
Climatic version	UHL1
Pulsation factor	5 %
Luminous flux, lm	1600...2940 lm
Upper operating temperature value	45 °C
Power consumption	14...28 W
Housing material	aluminum, polymer coated steel
Height	176 mm
Width	79 mm
Length	189 mm
Net weight	1.5 kg
Lower operating temperature value	-40 °C
Protection class against electric current	I
Light output, lm/W, not less than	105
Color rendering index (CRI), not less than	70
Correlating color temperature (CCT)	3000...5000 K
Power factor	0.7
Rated supply voltage	230 V
Type of supply current	Variable
Designated service life	B1/B8 2100/900 MHz a
Warranty period of operation	5 a
Type of conditional light intensity curve in the equatorial plane	circular/axial
Type of light intensity curve in characteristic meridional planes	K/Y/D/S/L/Special.
Light distribution class	?
Mains frequency	SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
