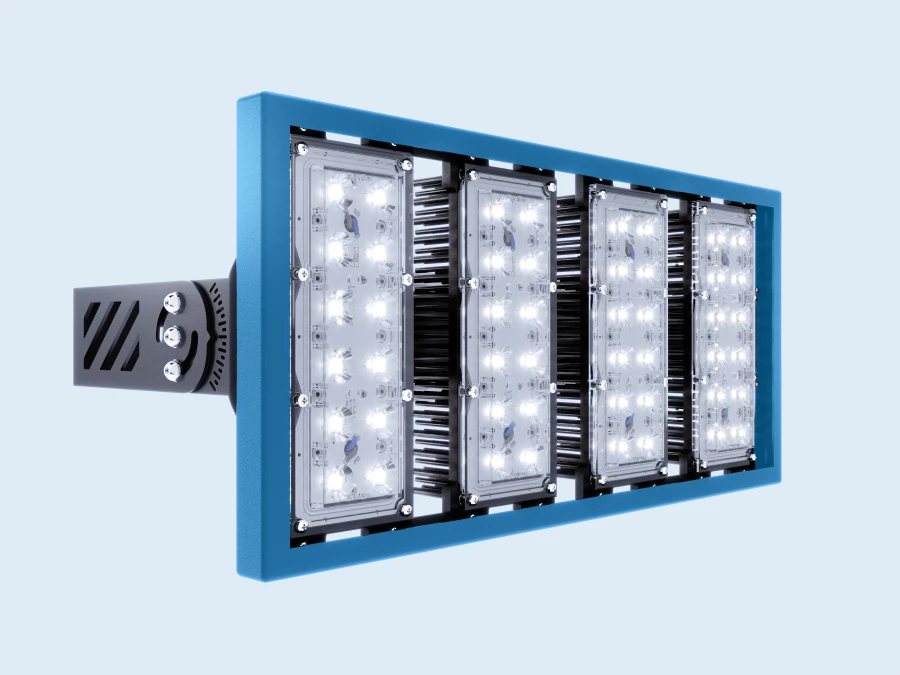

LED luminaire LV-FENIX x48

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

It is an optimal solution for lighting hot shops with temperatures up to +70C. It has a degree of protection against moisture and dust IP67. One of 8 types of optics can be installed on the device, and they can also be combined on one device. Large area of needle heat sinks and diodes loaded with a small current allow to obtain high efficiency - up to 143 lm/W and at the same time effectively dissipate heat.

Technical Specifications

Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Degree of protection (IP)	IP67
Color temperature	2700...6500 K
Type by installation location	stationary, outdoor, on a bracket
Climatic version	UHL1
Pulsation factor	5 %
Luminous flux, lm	14300...15500 lm
Upper operating temperature value	70 °C
Power consumption	108 W
Housing material	aluminum, polymer coated steel
Height	120 mm
Width	202 mm
Length	430 mm
Net weight	5 kg
Lower operating temperature value	-40 °C
Protection class against electric current	I
Power factor	0.95
Rated supply voltage	230 V
Type of supply current	Variable
Designated service life	B1/B8 2100/900 MHz a
Warranty period of operation	5 a
Light output, lm/W, not less than	125
Color rendering index (CRI), not less than	70
Type of conditional light intensity curve in the equatorial plane	circular
Type of light intensity curve in characteristic meridional planes	L/H/D/S
Light distribution class	?
Mains frequency	SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
