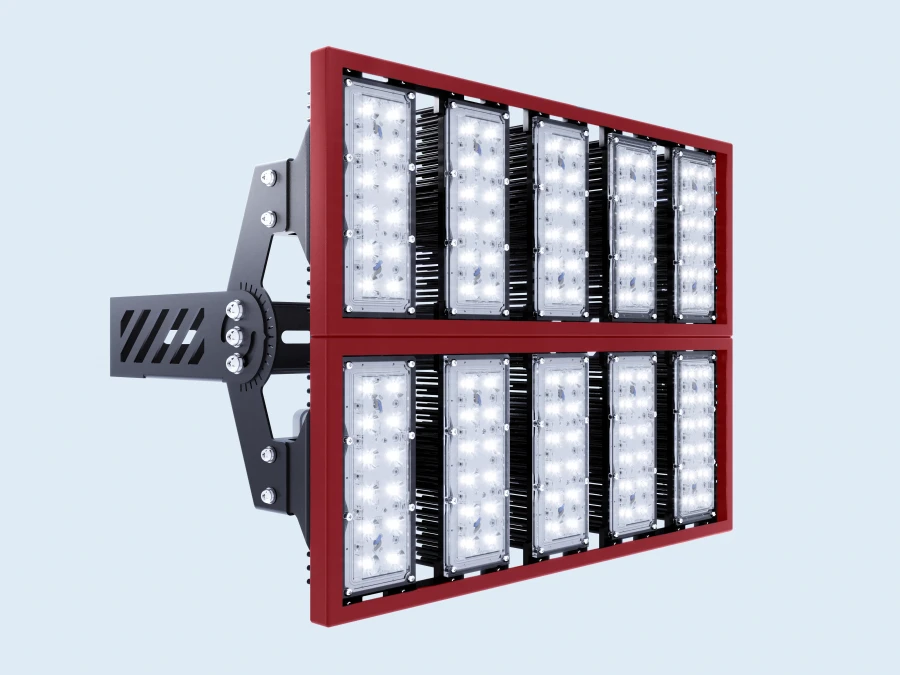

LED luminaire LV-EAGLE x120

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Lightweight mast floodlight with high light output. Optimised for illuminating large areas from mast supports and buildings. Designed for outdoor utilitarian lighting, namely for airport aprons and logistics complexes, factory floors and shopping centre car parks, stadiums and public spaces.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Degree of protection (IP) IP67

Type by installation location stationary, outdoor, on a bracket

Climatic version UHL1

Pulsation factor 5 %

Luminous flux, lm 51000...67700 lm

Upper operating temperature value 45 °C

Power consumption 425...588 W

Housing material aluminum, polymer coated steel

Height 135 mm

Width 403 mm

Length 553 mm

Net weight 13.5 kg

Lower operating temperature value -40 °C

Protection class against electric current I

Correlating color temperature (CCT) 2700...6500 K

Power factor 0.95

Rated supply voltage 230 V

Light output, lm/W, not less than 125

Color rendering index (CRI), not less than 70

Type of supply current Variable

Designated service life B1/B8 2100/900 MHz a

Warranty period of operation 5 a

Type of conditional light intensity curve in the equatorial plane circularly symmetrical

Type of light intensity curve in characteristic meridional planes L/H/D/S

Light distribution class ?

Mains frequency SBVVBG

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
