Available for Import

LED luminaire LEDMASTER TSR4-90-P-F90-5000K

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

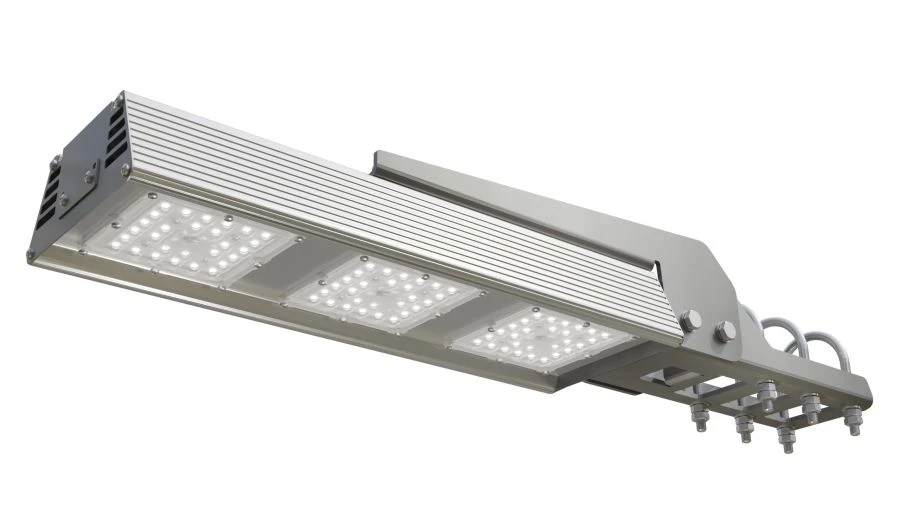

Luminaire consisting of one LED module, one power supply, mounting elements, wiring and junction box for connection to the network. Designed to work in AC networks with a nominal voltage of 220V and frequency of 50 Hz. It is designed to control the luminous flux of the luminaire according to the protocol 1-10V and soft start.Console luminaire with adjustable angle of inclination is intended for illumination of open areas of railway infrastructure facilities (passenger platforms, station area, passages, service passages, etc.)

Technical Specifications

Type of product according to PP RF 616	Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources
Warranty period of operation	5 years
Climatic version	UHL1
Net weight, kg	5.4 kg
Height, mm	119.5 mm
Width, mm	145.5 mm
Length, mm	698.2 mm
Mounting type	Cantilever
Housing material	Anodized aluminum
Operating frequency range, Hz	50...60
Operating voltage range, V	176...264 W
Rated supply voltage, V	220 W
Protection class against electric current	I
Lowest ambient temperature	-60 °C
Highest ambient temperature	40 °C
Degree of protection (IP)	65
Light intensity curve (LIC)	D - deep
Power factor	0.98
Ripple factor in dimming mode 100%	1 %
Color rendering index at dimming mode 100%(CRI)	71
Correlating color temperature at 100% dimming mode (CCT),K	4853 K
Light output at dimming mode 100%, Lm/W	169 Lm/W
Power consumption in dimming mode 100%, W	88 W
Luminous flux at dimming mode 100%,Lm	14944 lm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
