Available for Import

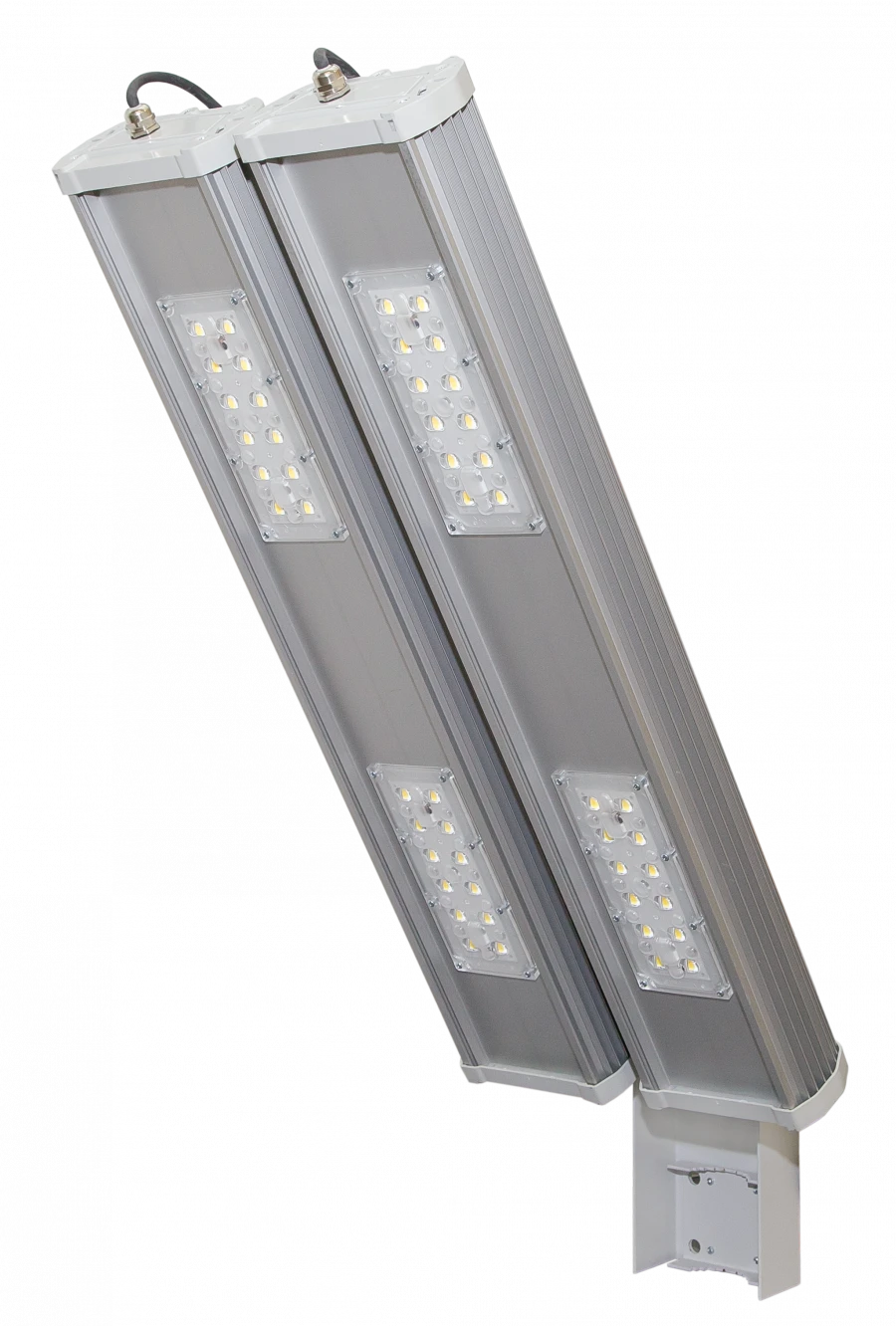

LED luminaire DSU1-160-50-Sh-305-U1

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

LED luminaire DSU1-200-50-Sh-306-U1

Description

Universal street lamp series DSU1 based on aluminium profile and high-efficiency and LED clusters for illumination of pedestrian zones and public spaces, municipal and federal highways are designed to work autonomously or as part of automated control systems for outdoor lighting.
Advantages: wide range of output powers and high luminous efficacy; different types of light intensity curve (Wide, Cosine, Deep, Concentrated); wide range of operating temperatures, corrosion resistance; different options of luminaire mounting, swivel bracket; possibility to manufacture luminaires with colour temperature from 2700 K to 6500 K..

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Length 789 mm

Width 307 mm

Light output, lm/W 110

Protection against output voltage overshoot 135 V

Service life of the luminaire 50000

Warranty period 5 a

Rated supply voltage 176...242 V

Power consumption 160 W

Power factor 0.95

Correlating color temperature (CCT) 5000 K

Lower operating temperature value 40 °C

Color rendering index (Ra) 70

Height 200 mm

Housing material Aluminum profile

Upper operating temperature value SBVVBG °C

Luminous flux 24000 lm

Pulsation factor 1 %

Degree of protection IP67

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
